| Manufacturer Part Number: | 961204-5804-AR |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

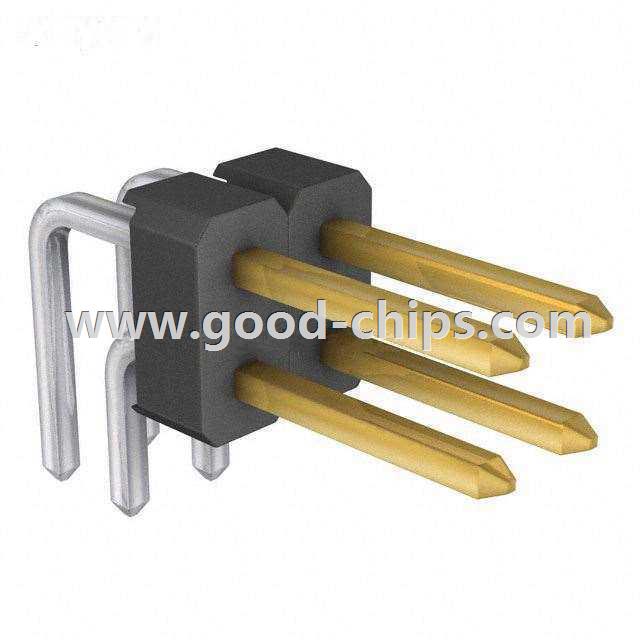

| Description: | 4 Positions Header, Unshrouded Connector 0.100" (2.54mm) Through Hole, Right Angle Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 961204-5804-AR Datasheet |
| Internal Part Number | 898-961204-5804-AR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 961204-5804-XX.x_t 961204-5804-XX.igs 961204-5804-XX.stp | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | 3M | |
| Series | 961 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Header, Unshrouded | |
| Number of Positions | 4 | |
| Number of Positions Loaded | All | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.100" (2.54mm) | |
| Contact Mating Length | 0.272" (6.90mm) | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Fastening Type | - | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | Flash | |
| Color | Black | |
| Standard Package | 1,600 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 961204-5804-AR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
961204-5804-AR is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 961204-5804-AR is new and unused, you can buy 961204-5804-AR 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 961204-5804-AR.
