Manufacturer Part Number: | 960272-7102-AR |
---|---|
Manufacturer: | 3M |
Product Category: | Rectangular Connectors - Headers, Receptacles, Female Sockets |
Available Quantity: | 9021 Pieces |
Unit Price: | Quote by Email |

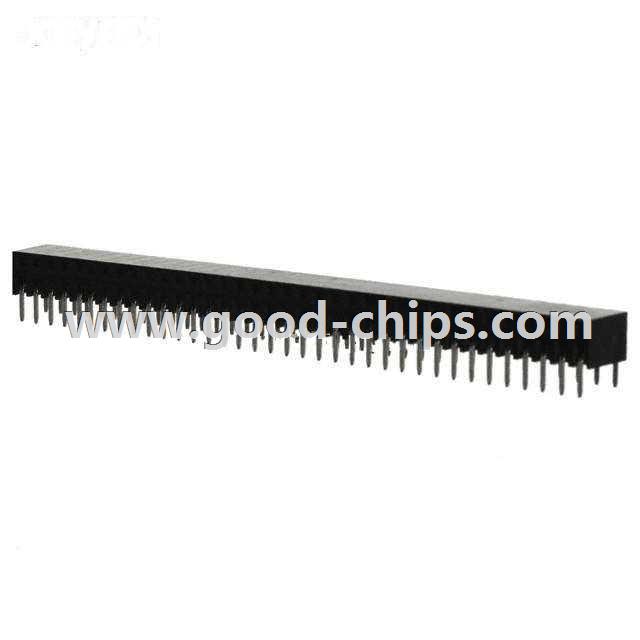

Description: | 72 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 960272-7102-AR Datasheet |
Internal Part Number | 898-960272-7102-AR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | 96X Series Stacking Connectors | |
3D Model | 960272-7102-XX.igs 960272-7102-XX.x_t 960272-7102-XX.stp | |
Online Catalog | 960 Series | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Headers, Receptacles, Female Sockets | |
Manufacturer | 3M | |
Series | 960 | |
Packaging | Tube | |
Part Status | Active | |
Connector Type | Receptacle | |
Contact Type | Female Socket | |
Number of Positions | 72 | |
Number of Positions Loaded | All | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 2 | |
Row Spacing | 0.100" (2.54mm) | |
Mounting Type | Through Hole, Right Angle | |
Termination | Solder | |
Fastening Type | - | |
Features | - | |
Contact Finish | Gold | |
Contact Finish Thickness | Flash | |
Color | Black | |
Standard Package | 108 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 960272-7102-AR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
960272-7102-AR is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 960272-7102-AR is new and unused, you can buy 960272-7102-AR 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 960272-7102-AR.
