| Manufacturer Part Number: | 94825 |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Terminals - Quick Connects, Quick Disconnect Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

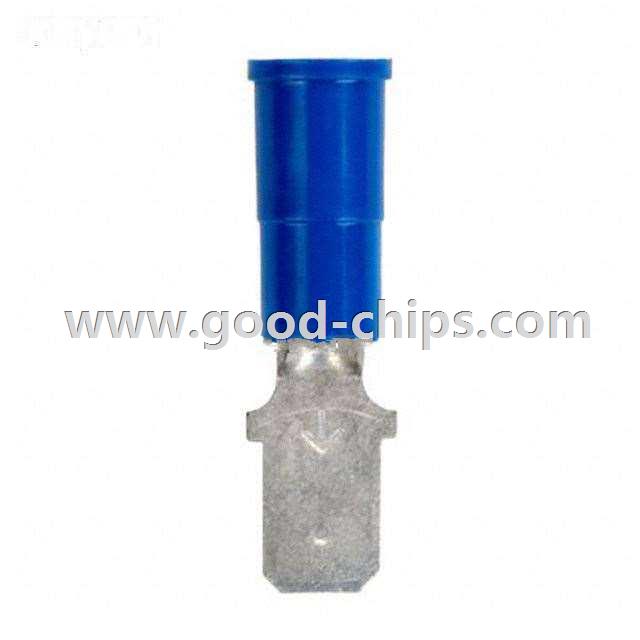

| Description: | 0.187" (4.75mm) Quick Connect Male 14-16 AWG Crimp Connector Non-Mating End Insulated |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 94825 Datasheet |
| Internal Part Number | 898-94825 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | 314,951,952,953 Color 16/Aug/2011 | |
| Category | Connectors, Interconnects | |
| Family | Terminals - Quick Connects, Quick Disconnect Connectors | |
| Manufacturer | 3M | |
| Series | Highland™ | |
| Packaging | Bulk | |
| Part Status | Active | |
| Terminal Type | Standard | |
| Gender | Male | |
| Tab Width | 0.187" (4.75mm) | |
| Tab Thickness | 0.020" (0.51mm) | |
| Tab Length | - | |
| Length - Overall | 0.850" (21.59mm) | |
| Termination | Crimp | |
| Wire Gauge | 14-16 AWG | |
| Insulation | Non-Mating End Insulated | |
| Mounting Type | Free Hanging (In-Line) | |
| Features | Butted Seam | |
| Color | Blue | |
| Contact Material | Copper | |
| Contact Finish | Tin | |
| Insulation Diameter | 0.145" (3.68mm) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 94825 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
94825 is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 94825 is new and unused, you can buy 94825 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 94825.
