| Manufacturer Part Number: | 94820 |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Terminals - Quick Connects, Quick Disconnect Connectors |
| Available Quantity: | 22503 Pieces |
| Unit Price: | Quote by Email |

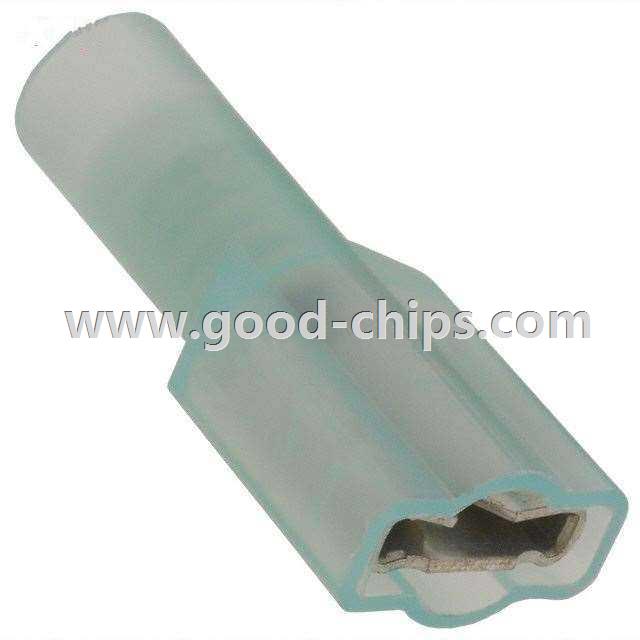

| Description: | 0.250" (6.35mm) Quick Connect Female 14-16 AWG Crimp Connector Fully Insulated |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 94820 Datasheet |
| Internal Part Number | 898-94820 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | 314,951,952,953 Color 16/Aug/2011 | |
| Online Catalog | Highland™ Series | |
| Category | Connectors, Interconnects | |
| Family | Terminals - Quick Connects, Quick Disconnect Connectors | |
| Manufacturer | 3M | |
| Series | Highland™ | |
| Packaging | Bulk | |
| Part Status | Active | |
| Terminal Type | Standard | |
| Gender | Female | |
| Tab Width | 0.250" (6.35mm) | |
| Tab Thickness | 0.032" (0.81mm) | |
| Tab Length | - | |
| Length - Overall | 0.870" (22.10mm) | |
| Termination | Crimp | |
| Wire Gauge | 14-16 AWG | |
| Insulation | Fully Insulated | |
| Mounting Type | Free Hanging (In-Line) | |
| Features | Butted Seam | |
| Color | Blue | |
| Contact Material | Brass | |
| Contact Finish | Tin | |
| Insulation Diameter | 0.145" (3.68mm) | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 94820 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
94820 is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 94820 is new and unused, you can buy 94820 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 94820.
