Manufacturer Part Number: | 94768 |
---|---|
Manufacturer: | 3M |
Product Category: | Terminals - Spade Connectors |
Available Quantity: | 9011 Pieces |
Unit Price: | Quote by Email |

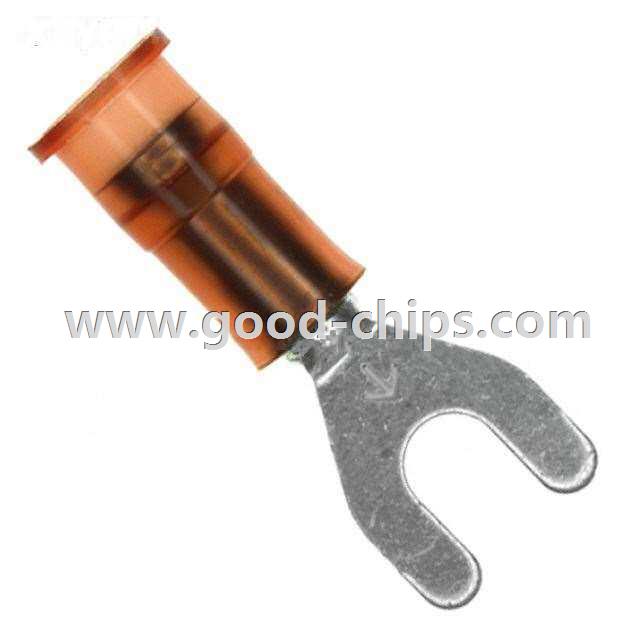

Description: | Red 6 Stud Spade Terminal Connector Crimp 18-22 AWG |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 94768 Datasheet |
Internal Part Number | 898-94768 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Connectors, Interconnects | |
Family | Terminals - Spade Connectors | |
Manufacturer | 3M | |
Series | Highland™ | |
Packaging | Bulk | |
Part Status | Active | |
Terminal Type | Standard | |
Stud/Tab Size | 6 Stud | |
Width - Outer Edges | 0.340" (8.64mm) | |
Length - Overall | 0.890" (22.61mm) | |
Mounting Type | Free Hanging (In-Line) | |
Termination | Crimp | |
Wire Gauge | 18-22 AWG | |
Insulation | Insulated | |
Features | Butted Seam | |
Color | Red | |
Contact Finish | Tin | |
Contact Material | Copper, ETP | |
Insulation Diameter | 0.145" (3.68mm) | |
Material - Insulation | Polyamide (PA), Nylon | |
Length - Ring Center to Termination | 0.290" (7.37mm) | |
Length - Termination | 0.440" (11.18mm) | |
Tongue Inside Opening | - | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 94768 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
94768 is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 94768 is new and unused, you can buy 94768 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 94768.
