Manufacturer Part Number: | 94735 |
---|---|
Manufacturer: | 3M |
Product Category: | Terminals - Ring Connectors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

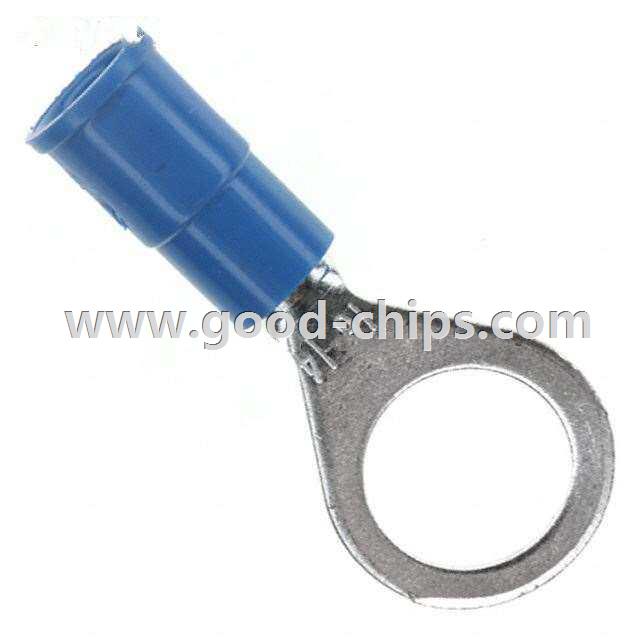

Description: | Ring Terminal Connector 5/16 Stud Circular 14-16 AWG Crimp |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 94735 Datasheet |
Internal Part Number | 898-94735 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Connectors, Interconnects | |
Family | Terminals - Ring Connectors | |
Manufacturer | 3M | |
Series | Highland™ | |
Packaging | Bulk | |
Part Status | Active | |
Terminal Type | Circular | |
Stud/Tab Size | 5/16 Stud | |
Thickness | 0.030" (0.76mm) | |
Width - Outer Edges | 0.470" (11.94mm) | |
Length - Overall | 1.080" (27.43mm) | |
Mounting Type | Free Hanging (In-Line) | |
Termination | Crimp | |
Wire Gauge | 14-16 AWG | |
Insulation | Insulated | |
Features | - | |
Color | Blue | |
Contact Material | Copper, ETP | |
Contact Finish | Tin | |
Insulation Diameter | 0.170" (4.32mm) | |
Material - Insulation | Vinyl | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 94735 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
94735 is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 94735 is new and unused, you can buy 94735 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 94735.
