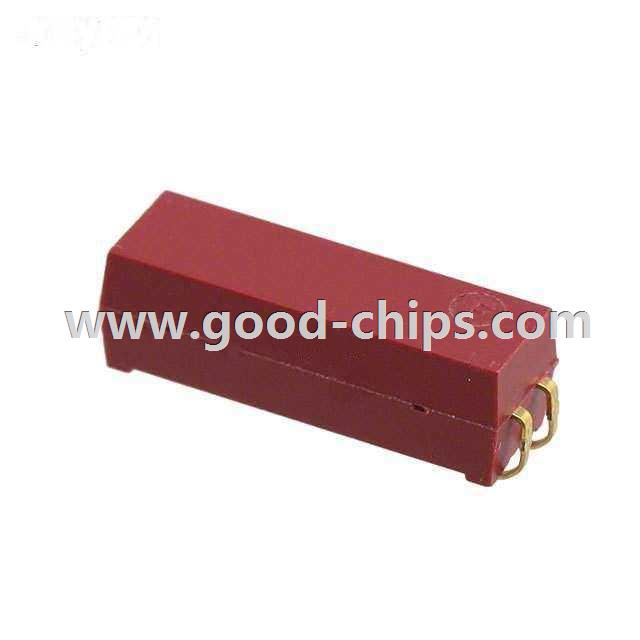

Manufacturer Part Number: | 9301-12-20 |
---|---|
Manufacturer: | Coto Technology |
Product Category: | Signal Relays, Up to 2 Amps |
Available Quantity: | 9011 Pieces |
Unit Price: | Quote by Email |
Description: | Reed Relay SPST-NO (1 Form A) Surface Mount |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 2 (1 Year) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 9301-12-20 Datasheet |
Internal Part Number | 898-9301-12-20 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Mfg Application Notes | Reed Relays Technical, Appl Into | |
Online Catalog | 9300 Series | |
Category | Relays | |
Family | Signal Relays, Up to 2 Amps | |
Manufacturer | Coto Technology | |
Series | 9300 | |
Packaging | Tube | |
Part Status | Active | |
Relay Type | Reed | |
Coil Type | Non Latching | |
Coil Current | 12mA | |
Coil Voltage | 12VDC | |
Contact Form | SPST-NO (1 Form A) | |
Contact Rating (Current) | 500mA | |
Switching Voltage | 200VAC, 200VDC - Max | |
Turn On Voltage (Max) | 9 VDC | |
Turn Off Voltage (Min) | 1 VDC | |
Operate Time | 0.4ms | |
Release Time | 0.1ms | |
Features | - | |
Mounting Type | Surface Mount | |
Termination Style | J Lead | |
Contact Material | - | |
Coil Power | - | |
Coil Resistance | 1 kOhms | |
Operating Temperature | -20°C ~ 85°C | |
Standard Package | 89 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 9301-12-20 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
9301-12-20 is in stock for immediate shipping now. We are the distributor of Coto Technology all series components. The condition of 9301-12-20 is new and unused, you can buy 9301-12-20 Coto Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 9301-12-20.
