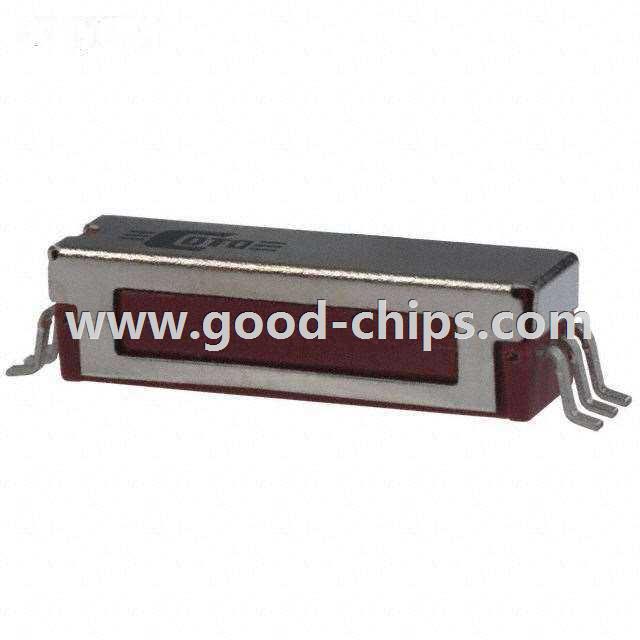

| Manufacturer Part Number: | 9290-05-00 |
|---|---|
| Manufacturer: | Coto Technology |
| Product Category: | Signal Relays, Up to 2 Amps |
| Available Quantity: | 10532 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Relay SPST-NO (1 Form A) Surface Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 9290-05-00 Datasheet |
| Internal Part Number | 898-9290-05-00 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Reed Relays Technical, Appl Into | |
| Online Catalog | 9290 Series | |
| Category | Relays | |
| Family | Signal Relays, Up to 2 Amps | |
| Manufacturer | Coto Technology | |
| Series | 9290 | |
| Packaging | Tube | |
| Part Status | Active | |
| Relay Type | RF | |
| Coil Type | Non Latching | |
| Coil Current | 31.3mA | |
| Coil Voltage | 5VDC | |
| Contact Form | SPST-NO (1 Form A) | |
| Contact Rating (Current) | 500mA | |
| Switching Voltage | 200VAC, 200VDC - Max | |
| Turn On Voltage (Max) | 3.75 VDC | |
| Turn Off Voltage (Min) | 0.4 VDC | |
| Operate Time | 0.4ms | |
| Release Time | 0.1ms | |
| Features | Magnetic Shield | |
| Mounting Type | Surface Mount | |
| Termination Style | Gull Wing | |
| Contact Material | - | |
| Coil Power | - | |
| Coil Resistance | 160 Ohms | |
| Operating Temperature | -20°C ~ 85°C | |
| Standard Package | 109 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 9290-05-00 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
9290-05-00 is in stock for immediate shipping now. We are the distributor of Coto Technology all series components. The condition of 9290-05-00 is new and unused, you can buy 9290-05-00 Coto Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 9290-05-00.
