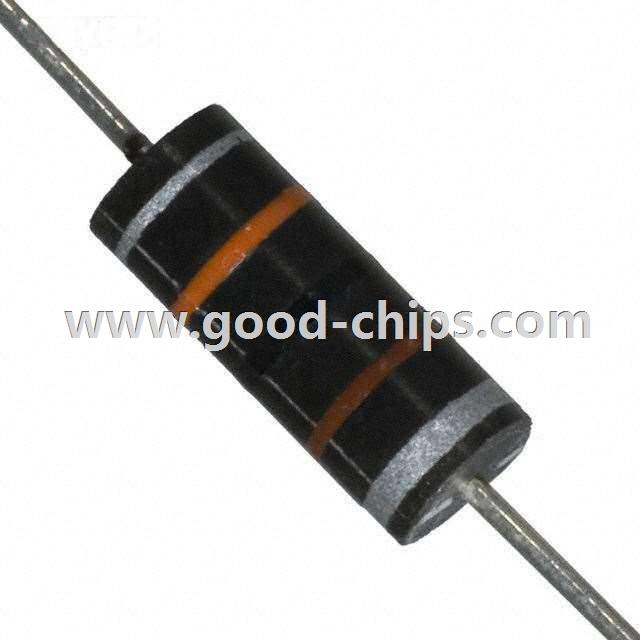

Manufacturer Part Number: | 9250A-106-RC |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 10mH Shielded Molded Inductor 24mA 137 Ohm Max Axial |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 9250A-106-RC Datasheet |
Internal Part Number | 898-9250A-106-RC | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Bourns Inc. | |
Series | 9250A | |
Packaging | Bulk | |
Part Status | Obsolete | |
Type | Molded | |
Material - Core | Ferrite | |
Inductance | 10mH | |
Tolerance | ±10% | |
Current Rating | 24mA | |
Current - Saturation | 14mA | |
Shielding | Shielded | |
DC Resistance (DCR) | 137 Ohm Max | |
Q @ Freq | 40 @ 250kHz | |
Frequency - Self Resonant | 470kHz | |
Ratings | - | |
Operating Temperature | -55°C ~ 125°C | |
Frequency - Test | 250kHz | |
Mounting Type | Through Hole | |
Package / Case | Axial | |
Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | |
Height - Seated (Max) | - | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 9250A-106-RC | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
9250A-106-RC is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 9250A-106-RC is new and unused, you can buy 9250A-106-RC Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 9250A-106-RC.
