Manufacturer Part Number: | 8R25-N001 |
---|---|
Manufacturer: | 3M |
Product Category: | D-Sub Connectors |
Available Quantity: | 9457 Pieces |
Unit Price: | Quote by Email |

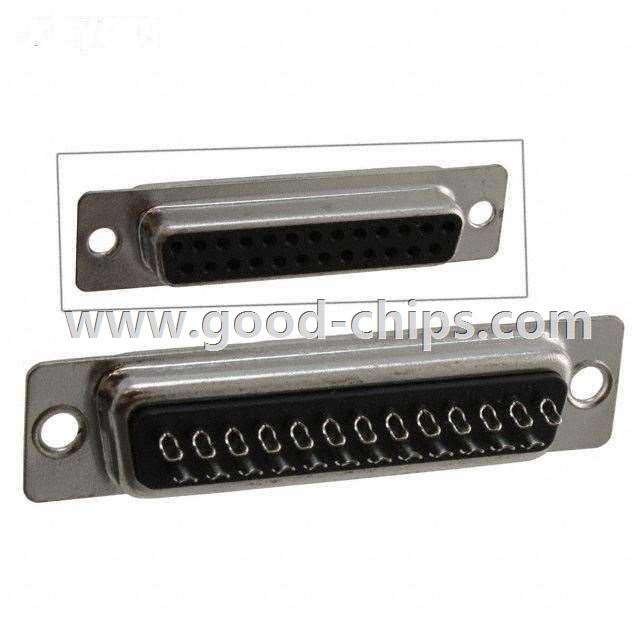

Description: | 25 Position D-Sub Receptacle, Female Sockets Connector, Panel Mount Solder Cup |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 8R25-N001 Datasheet |
Internal Part Number | 898-8R25-N001 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | 3M™ Solder-Cup D Sub Plug and Socket, 8000 Series | |
Category | Connectors, Interconnects | |
Family | D-Sub Connectors | |
Manufacturer | 3M | |
Series | 8000 | |
Packaging | Tray | |
Part Status | Obsolete | |
Connector Style | D-Sub | |
Connector Type | Receptacle, Female Sockets | |
Number of Positions | 25 | |
Number of Rows | 2 | |
Shell Size, Connector Layout | 3 (DB, B) | |
Contact Type | Signal | |
Mounting Type | Panel Mount | |
Flange Feature | Housing/Shell (Unthreaded) | |
Termination | Solder Cup | |
Features | - | |
Shell Material, Finish | Steel | |
Contact Finish | Gold | |
Contact Finish Thickness | Flash | |
Ingress Protection | - | |
Operating Temperature | -55°C ~ 105°C | |
Voltage Rating | 250V | |
Current Rating | 3A | |
Housing Material | Thermoplastic | |
Color | - | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 8R25-N001 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
8R25-N001 is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 8R25-N001 is new and unused, you can buy 8R25-N001 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 8R25-N001.
