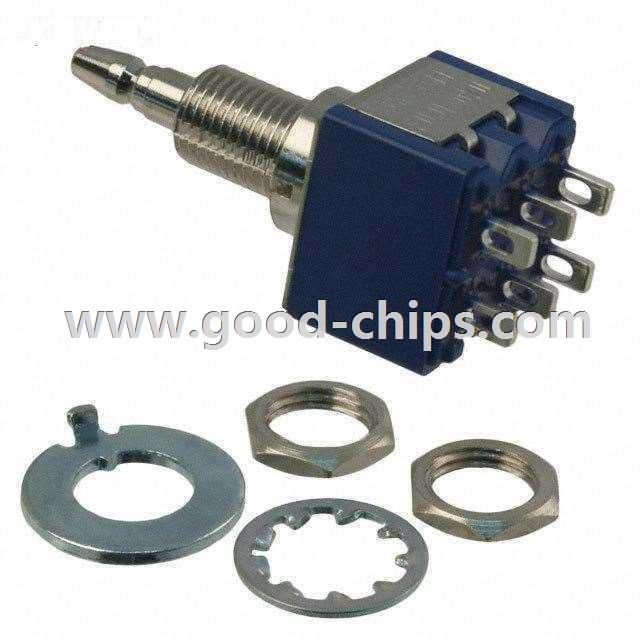

| Manufacturer Part Number: | 8R2011-N-Z |
|---|---|
| Manufacturer: | Copal Electronics Inc. |
| Product Category: | Pushbutton Switches |
| Available Quantity: | 9142 Pieces |
| Unit Price: | Quote by Email |
| Description: | Pushbutton Switch DPDT Standard Panel Mount, Rear |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 8R2011-N-Z Datasheet |
| Internal Part Number | 898-8R2011-N-Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | 3D CAD Models Pushbutton Switch | |
| Featured Product | 8R-N Series Soft Touch Miniature Pushbutton Switches Pushbuttons | |
| 3D Model | 8R2011-N-Z | |
| Online Catalog | 8R-N Series | |
| Category | Switches | |
| Family | Pushbutton Switches | |
| Manufacturer | Copal Electronics Inc. | |
| Series | 8R-N | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Standard | |
| Circuit | DPDT | |
| Switch Function | On-On | |
| Current Rating | 3A (AC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | - | |
| Actuator Type | Plunger for Cap | |
| Color - Actuator/Cap | - | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Panel Mount, Rear | |
| Termination Style | Solder Lug | |
| Ingress Protection | - | |
| Features | - | |
| Panel Cutout Dimensions | Circular - 6.50mm Dia | |
| Operating Temperature | -20°C ~ 85°C | |
| Mechanical Life | - | |
| Electrical Life | 25,000 Cycles | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 8R2011-N-Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
8R2011-N-Z is in stock for immediate shipping now. We are the distributor of Copal Electronics Inc. all series components. The condition of 8R2011-N-Z is new and unused, you can buy 8R2011-N-Z Copal Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 8R2011-N-Z.
