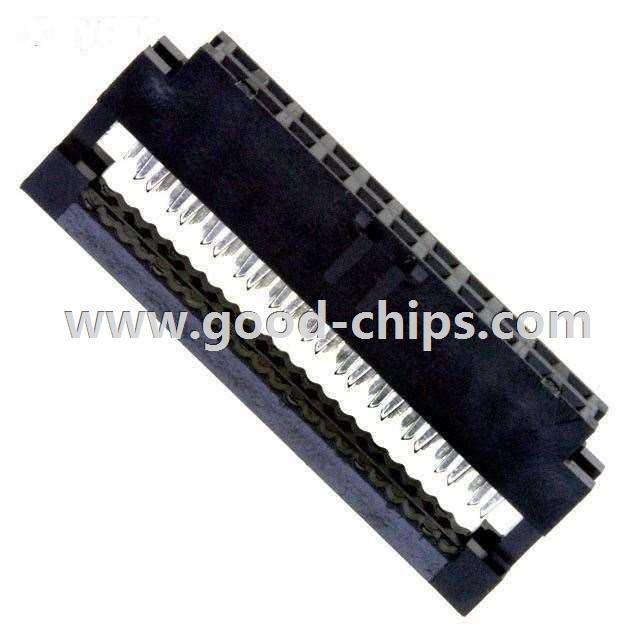

Manufacturer Part Number: | 89947-722LF |
---|---|
Manufacturer: | Amphenol FCI |
Product Category: | Rectangular Connectors - Free Hanging, Panel Mount |
Available Quantity: | 9537 Pieces |
Unit Price: | Quote by Email |
Description: | 22 Position Rectangular Receptacle Connector IDC Gold 28 AWG |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 89947-722LF Datasheet |
Internal Part Number | 898-89947-722LF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | Mezzselect Tool - Another Geek Moment | |
Featured Product | MezzSelect | |
3D Model | 89947-722LF.igs 89947-722LF.prt 89947-722LF.stp | |
PCN Design/Specification | Minitek IDK 23/Mar/2007 PBT Material 05/Sept/2012 | |
Online Catalog | Minitek™ MezzSelect™, Basics+ Series | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Free Hanging, Panel Mount | |
Manufacturer | Amphenol FCI | |
Series | Minitek® MezzSelect™, Basics+ | |
Packaging | Tube | |
Part Status | Active | |
Connector Type | Receptacle | |
Contact Type | Female Socket | |
Number of Positions | 22 | |
Pitch | 0.079" (2.00mm) | |
Number of Rows | 2 | |
Row Spacing | 0.079" (2.00mm) | |
Mounting Type | Free Hanging (In-Line) | |
Fastening Type | Friction Lock | |
Cable Termination | IDC | |
Wire Type | Ribbon Cable | |
Wire Gauge | 28 AWG | |
Features | Feed Through, Polarizing Key | |
Contact Finish | Gold | |
Contact Finish Thickness | 30µin (0.76µm) | |
Color | Black | |
Standard Package | 22 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 89947-722LF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
89947-722LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 89947-722LF is new and unused, you can buy 89947-722LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 89947-722LF.
