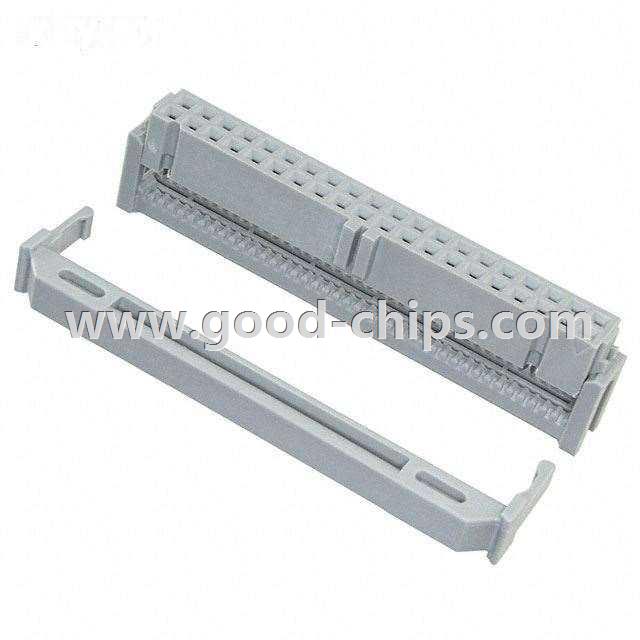

| Manufacturer Part Number: | 89140-0103 |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Rectangular Connectors - Free Hanging, Panel Mount |
| Available Quantity: | 9704 Pieces |
| Unit Price: | Quote by Email |
| Description: | 40 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 89140-0103 Datasheet |
| Internal Part Number | 898-89140-0103 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Date Code Decipher | |
| Product Training Modules | IDC Wiremount Connectors Primer | |
| Online Catalog | 891 and D89 Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Free Hanging, Panel Mount | |
| Manufacturer | 3M | |
| Series | 891 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Receptacle | |
| Contact Type | Female Socket | |
| Number of Positions | 40 | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.100" (2.54mm) | |
| Mounting Type | Free Hanging (In-Line) | |
| Fastening Type | - | |
| Cable Termination | IDC | |
| Wire Type | Ribbon Cable | |
| Wire Gauge | 26-28 AWG | |
| Features | Feed Through, Polarizing Key, Strain Relief | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Color | Gray | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 89140-0103 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
89140-0103 is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 89140-0103 is new and unused, you can buy 89140-0103 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 89140-0103.
