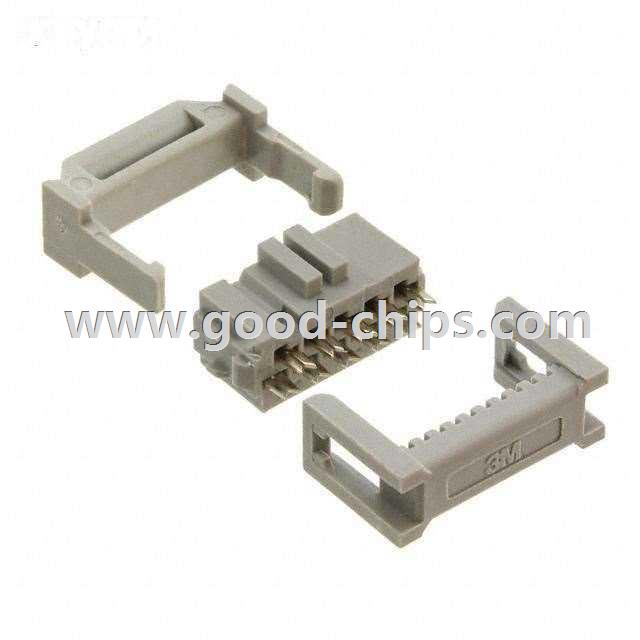

Manufacturer Part Number: | 89110-0103 |
---|---|
Manufacturer: | 3M |
Product Category: | Rectangular Connectors - Free Hanging, Panel Mount |
Available Quantity: | 10172 Pieces |
Unit Price: | Quote by Email |
Description: | 10 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 89110-0103 Datasheet |
Internal Part Number | 898-89110-0103 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | Date Code Decipher | |
Product Training Modules | IDC Wiremount Connectors Primer | |
Featured Product | Ribbon Cable Assemblies | |
3D Model | 89110-0103-01.igs 89110-0103-01.stp 89110-0103-01.x_t | |
Online Catalog | 891 and D89 Series | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Free Hanging, Panel Mount | |
Manufacturer | 3M | |
Series | 891 | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Receptacle | |
Contact Type | Female Socket | |
Number of Positions | 10 | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 2 | |
Row Spacing | 0.100" (2.54mm) | |
Mounting Type | Free Hanging (In-Line) | |
Fastening Type | - | |
Cable Termination | IDC | |
Wire Type | Ribbon Cable | |
Wire Gauge | 26-28 AWG | |
Features | Feed Through, Polarizing Key, Strain Relief | |
Contact Finish | Gold | |
Contact Finish Thickness | 30µin (0.76µm) | |
Color | Gray | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 89110-0103 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
89110-0103 is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 89110-0103 is new and unused, you can buy 89110-0103 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 89110-0103.
