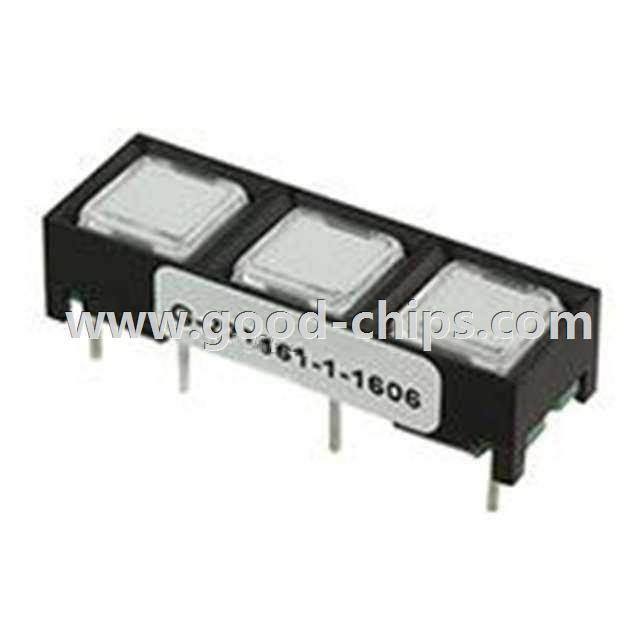

| Manufacturer Part Number: | 87EC3-201 |
|---|---|
| Manufacturer: | Grayhill Inc. |
| Product Category: | Keypad Switches |
| Available Quantity: | 9087 Pieces |
| Unit Price: | Quote by Email |
| Description: | Keypad Switch 3 Transparent Key Cap Keys Snap Dome Contacts Independent Switches (SPST) Output Non-Illuminated 0.01A @ 24VDC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 87EC3-201 Datasheet |
| Internal Part Number | 898-87EC3-201 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Keypads | |
| RoHS Information | Compliance Status by Product Type | |
| PCN Design/Specification | 87 Series Keypad Dome Contact 19/Nov/2015 | |
| Online Catalog | 87 Series | |
| Category | Switches | |
| Family | Keypad Switches | |
| Manufacturer | Grayhill Inc. | |
| Series | 87 | |
| Part Status | Active | |
| Switch Type | Snap Dome | |
| Number of Keys | 3 | |
| Matrix (Columns x Rows) | 3 x 1 | |
| Illumination | Non-Illuminated | |
| Legend Type | Interchangeable | |
| Key Type | Transparent Key Cap | |
| Output Type | Independent Switches (SPST) | |
| Legend | Customizable (Sold Separate) | |
| Legend Color | - | |
| Key Color | White | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Panel Cutout Dimensions | - | |
| Operating Temperature | -40°C ~ 80°C | |
| Ingress Protection | - | |
| Illumination Voltage (Nominal) | - | |
| Contact Rating @ Voltage | 0.01A @ 24VDC | |
| Features | - | |
| Operational Life | 3,000,000 Cycles | |
| Approvals | - | |
| Standard Package | 7 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 87EC3-201 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
87EC3-201 is in stock for immediate shipping now. We are the distributor of Grayhill Inc. all series components. The condition of 87EC3-201 is new and unused, you can buy 87EC3-201 Grayhill Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 87EC3-201.
