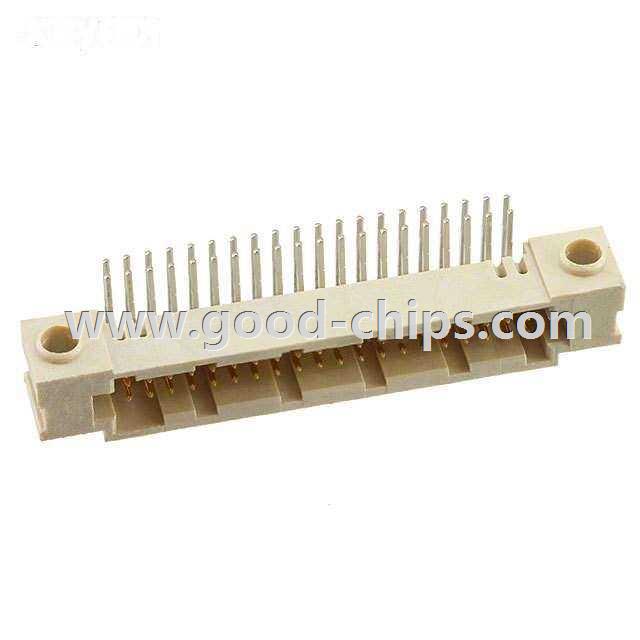

Manufacturer Part Number: | 87402-120LF |
---|---|
Manufacturer: | Amphenol FCI |
Product Category: | Rectangular - Board to Board Connectors - Headers, Male Pins |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | CONN HEADER 40POS .050 R/A PCB |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 87402-120LF Datasheet |
Internal Part Number | 898-87402-120LF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | Mezzselect Tool - Another Geek Moment | |
Featured Product | MezzSelect | |
PCN Design/Specification | Housing Color 20/Sept/2008 | |
Online Catalog | Rib-Cage™, MezzSelect™ Series | |
Category | Connectors, Interconnects | |
Family | Rectangular - Board to Board Connectors - Headers, Male Pins | |
Manufacturer | Amphenol FCI | |
Series | Rib-Cage™, MezzSelect™ | |
Packaging | Tube | |
Part Status | Active | |
Connector Type | Shrouded | |
Number of Positions | 40 | |
Number of Positions Loaded | All | |
Pitch | 0.050" (1.27mm) | |
Number of Rows | 2 | |
Row Spacing | 0.050" (1.27mm) | |
Height Stacking (Mating) | - | |
Molding Height Above Board | 0.240" (6.10mm) | |
Contact Mating Length | 0.130" (3.30mm) | |
Mounting Type | Through Hole, Right Angle | |
Termination | Solder | |
Contact Finish | Gold or Gold, GXT™ | |
Contact Finish Thickness | 30µin (0.76µm) | |
Features | Mounting Flange | |
Color | Natural | |
Standard Package | 17 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 87402-120LF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
87402-120LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 87402-120LF is new and unused, you can buy 87402-120LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 87402-120LF.
