| Manufacturer Part Number: | 865609PLTXLF |
|---|---|
| Manufacturer: | Amphenol FCI |
| Product Category: | D-Sub, D-Shaped Connectors - Housings |
| Available Quantity: | 10832 Pieces |
| Unit Price: | Quote by Email |

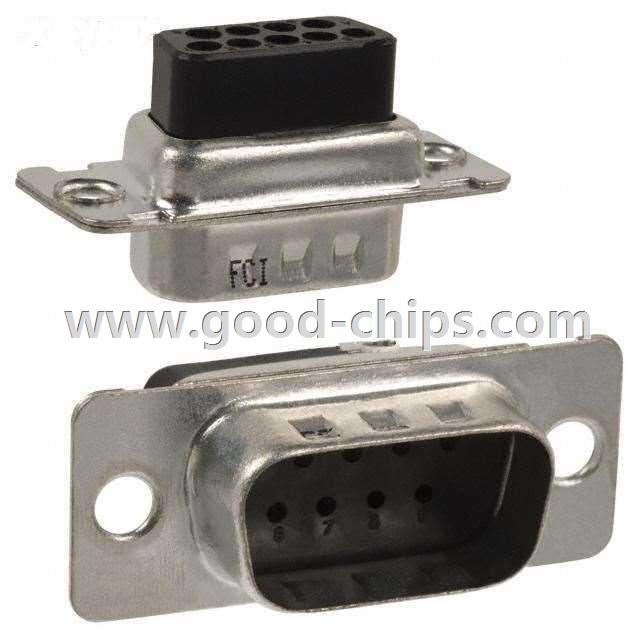

| Description: | Plug for Male Contacts Housing D-Sub Connector 9 Position |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 865609PLTXLF Datasheet |
| Internal Part Number | 898-865609PLTXLF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | D-Sub I/O Connectors | |
| 3D Model | 865609PLTxLF.igs 865609PLTxLF.prt 865609PLTxLF.stp | |
| PCN Design/Specification | Multiple Devices 06/Oct/2015 | |
| Online Catalog | 8656 Series | |
| Category | Connectors, Interconnects | |
| Family | D-Sub, D-Shaped Connectors - Housings | |
| Manufacturer | Amphenol FCI | |
| Series | 8656 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Style | D-Sub | |
| Connector Type | Plug for Male Contacts | |
| Number of Positions | 9 | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 1 (DE, E) | |
| Contact Type | Signal | |
| Mounting Type | Panel Mount | |
| Flange Feature | Housing/Shell (Unthreaded) | |
| Features | Grounding Indents | |
| Shell Material, Finish | Steel, Tin/Zinc Plated | |
| Shell Finish Thickness | - | |
| Note | Contacts Not Provided | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Mating Cycles | 200 | |
| Dielectric Material | Thermoplastic | |
| Color | - | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 865609PLTXLF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
865609PLTXLF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 865609PLTXLF is new and unused, you can buy 865609PLTXLF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 865609PLTXLF.
