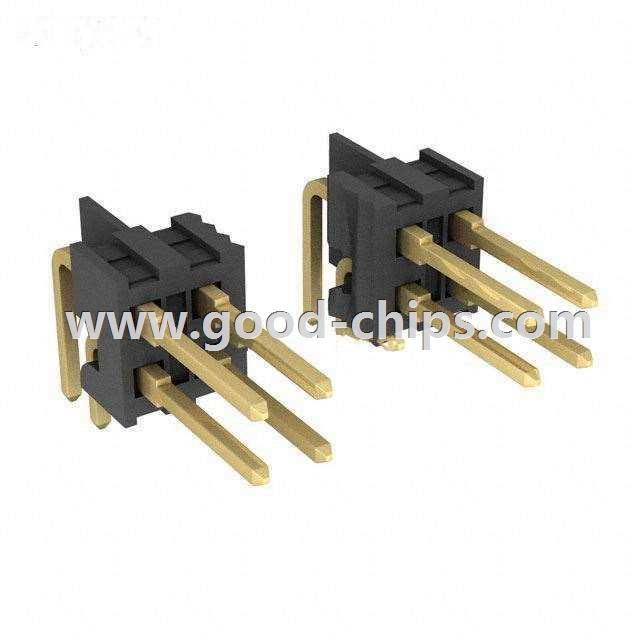

| Manufacturer Part Number: | 86479-5 |
|---|---|
| Manufacturer: | TE Connectivity Potter & Brumfield Relays |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 9489 Pieces |
| Unit Price: | Quote by Email |
| Description: | 14 Positions Header, Unshrouded Connector 0.100" (2.54mm) Through Hole, Right Angle Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 86479-5 Datasheet |
| Internal Part Number | 898-86479-5 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 86479-5 Statement of Compliance RoHS 2 Statement | |
| Featured Product | AMPMODU Connectors | |
| 3D Model | 86479-5.pdf | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | AMPMODU Mod II Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | TE Connectivity AMP Connectors | |
| Series | AMPMODU Mod II | |
| Packaging | Tray | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Header, Unshrouded | |
| Number of Positions | 14 | |
| Number of Positions Loaded | All | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.100" (2.54mm) | |
| Contact Mating Length | 0.318" (8.08mm) | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Fastening Type | - | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Color | Black | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 86479-5 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
86479-5 is in stock for immediate shipping now. We are the distributor of TE Connectivity Potter & Brumfield Relays all series components. The condition of 86479-5 is new and unused, you can buy 86479-5 TE Connectivity Potter & Brumfield Relays with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 86479-5.
