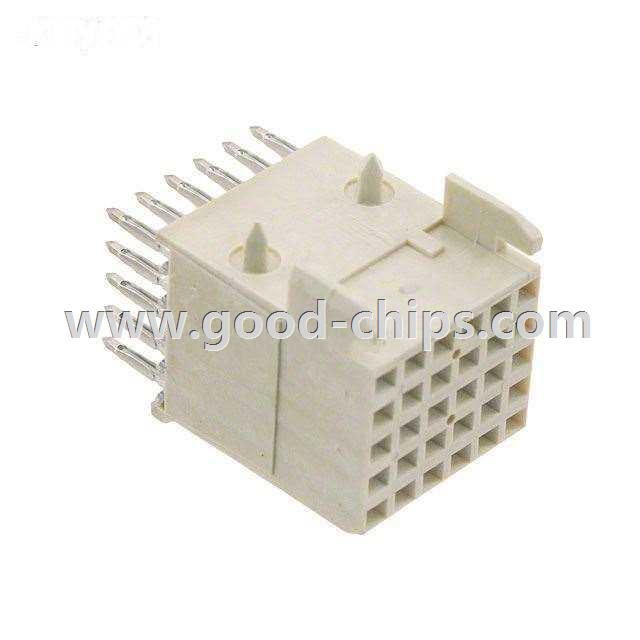

85761-1101LF

85761-1101LF
Manufacturer Part Number:85761-1101LF
Manufacturer:
Product Category:Backplane Connectors - Specialized
Available Quantity:9453 Pieces
Unit Price:Quote by Email
Description:METRAL RCPT STR PFIT 30POS
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 85761-1101LF Datasheet
85761-1101LF´s Parameters
Internal Part Number898-85761-1101LF
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
PCN Design/SpecificationGold/GXT Plating30/May/2007
Press-Fit Design 17/Sept/2011
Metral Receptacle/Tube shape 03/Nov/2011
PCN PackagingMultiple Devices 16/Nov/2015
Online Catalog Metral® Series
CategoryConnectors, Interconnects
FamilyBackplane Connectors - Specialized
ManufacturerAmphenol FCI
SeriesMetral®
PackagingTube
Part StatusActive
Connector Usage-
Connector TypeReceptacle, Female Sockets
Connector Style-
Number of Positions30
Number of Positions LoadedAll
Pitch0.079" (2.00mm)
Number of Rows5
Number of Columns-
Mounting TypeThrough Hole
TerminationPress-Fit
Contact Layout, Typical-
FeaturesSpacer
Contact FinishGold
Contact Finish Thickness-
ColorNatural
Current Rating1A
Material Flammability RatingUL94 V-0
Operating Temperature-55°C ~ 125°C
Voltage Rating1000V
Standard Package 48
Weight0.001 KG
ApplicationEmail for details
Replacement Part85761-1101LF
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

85761-1101LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 85761-1101LF is new and unused, you can buy 85761-1101LF Amphenol FCI with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 85761-1101LF.
