| Manufacturer Part Number: | 84825-01 |
|---|---|
| Manufacturer: | Honeywell Sensing and Productivity Solutions |
| Product Category: | Keylock Switches |
| Available Quantity: | 9089 Pieces |
| Unit Price: | Quote by Email |

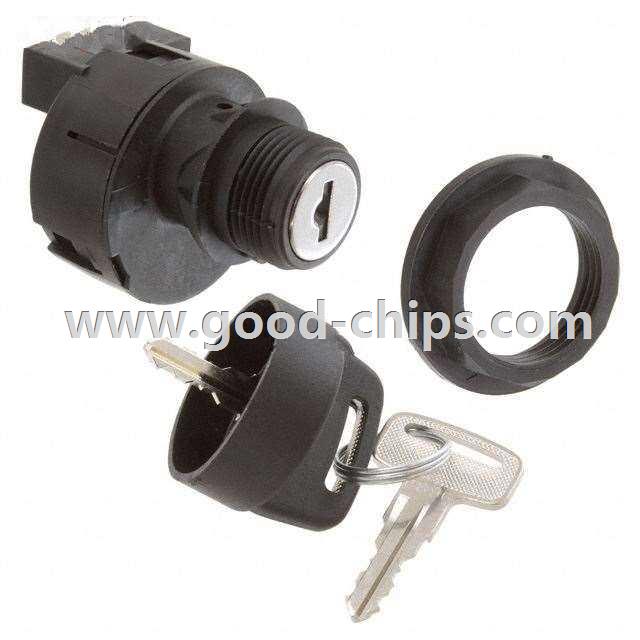

| Description: | Keylock Switch 2 Position SPST 20A (DC) 12V (DC) Panel Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 84825-01 Datasheet |
| Internal Part Number | 898-84825-01 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Hobb Key Switch Series | |
| Category | Switches | |
| Family | Keylock Switches | |
| Manufacturer | Honeywell Sensing and Productivity Solutions | |
| Series | - | |
| Part Status | Active | |
| Circuit | SPST | |
| Number of Positions | 2 | |
| Switch Function | Off-On | |
| Contact Timing | Not Specified | |
| Current Rating | 20A (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 12V | |
| Actuator Type | Flat Key | |
| Key Removable Positions | Center | |
| Angle of Throw | 45° | |
| Contact Material | Brass | |
| Contact Finish | Tin | |
| Mounting Type | Panel Mount | |
| Termination Style | Connector | |
| Panel Cutout Dimensions | Circular - 22.35mm Dia | |
| Features | - | |
| Depth Behind Flange | 43.43mm | |
| Operating Temperature | -40°C ~ 85°C | |
| Mechanical Life | 25,000 Cycles | |
| Electrical Life | 25,000 Cycles | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 84825-01 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
84825-01 is in stock for immediate shipping now. We are the distributor of Honeywell Sensing and Productivity Solutions all series components. The condition of 84825-01 is new and unused, you can buy 84825-01 Honeywell Sensing and Productivity Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 84825-01.
