| Manufacturer Part Number: | 84-536-11 |
|---|---|
| Manufacturer: | Aries Electronics |
| Product Category: | Sockets for ICs, Transistors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

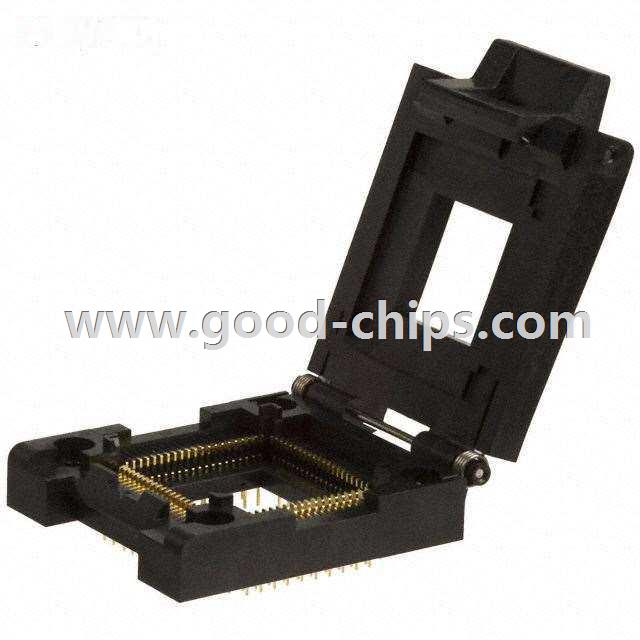

| Description: | CONN SOCKET PLCC ZIF 84POS GOLD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 84-536-11 Datasheet |
| Internal Part Number | 898-84-536-11 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Connectors, Interconnects | ||
| Family | Sockets for ICs, Transistors | |
| Manufacturer | Aries Electronics | |
| Series | 536 | |
| Packaging | - | |
| Part Status | Obsolete | |
| Type | PLCC, ZIF (ZIP) | |
| Number of Positions or Pins (Grid) | 84 (4 x 21) | |
| Pitch - Mating | 0.050" (1.27mm) | |
| Contact Finish - Mating | Gold | |
| Contact Finish Thickness - Mating | 12µin (0.30µm) | |
| Contact Material - Mating | - | |
| Mounting Type | Through Hole | |
| Features | Open Frame | |
| Termination | - | |
| Pitch - Post | - | |
| Contact Finish - Post | - | |
| Contact Finish Thickness - Post | - | |
| Contact Material - Post | - | |
| Housing Material | - | |
| Operating Temperature | - | |
| Termination Post Length | - | |
| Material Flammability Rating | - | |
| Current Rating | - | |
| Contact Resistance | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 84-536-11 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
84-536-11 is in stock for immediate shipping now. We are the distributor of Aries Electronics all series components. The condition of 84-536-11 is new and unused, you can buy 84-536-11 Aries Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 84-536-11.
