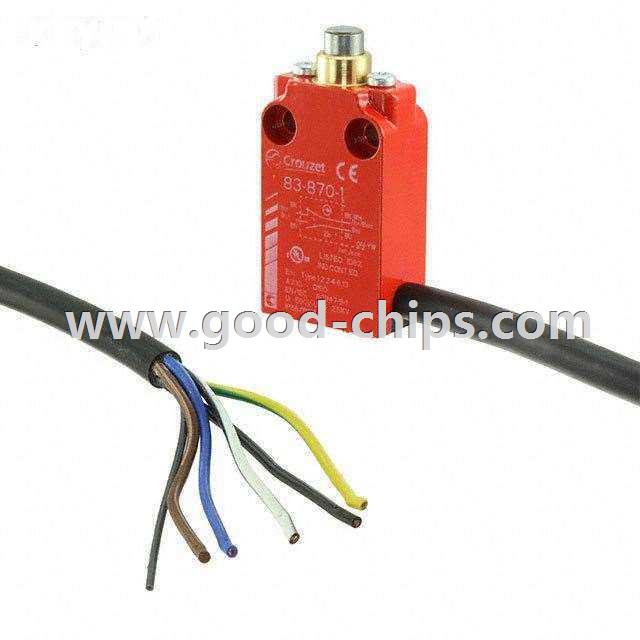

| Manufacturer Part Number: | 83870103 |
|---|---|
| Manufacturer: | Crouzet USA |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 9028 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACTION DPST 6A 120V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 83870103 Datasheet |
| Internal Part Number | 898-83870103 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Declaration of Conformity | |
| Product Training Modules | Snap Action Switches Technology Specification | |
| Online Catalog | 83870 Series | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | Crouzet USA | |
| Series | 83870 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | DPST (1-NO, 1-NC) (DB) | |
| Switch Function | On-Mom, Off-Mom | |
| Current Rating | 6A (AC), 550mA (DC) | |
| Voltage Rating - AC | 120V | |
| Voltage Rating - DC | 125V | |
| Actuator Type | Round (Pin Plunger) | |
| Mounting Type | Chassis Mount | |
| Termination Style | Cable Leads | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Features | Cable Length 3m | |
| Operating Force, Torque | 1020gf | |
| Release Force | - | |
| Pretravel | - | |
| Differential Travel | - | |
| Overtravel | - | |
| Operating Position | - | |
| Mechanical Life | 10,000,000 Cycles | |
| Electrical Life | 500,000 Cycles | |
| Operating Temperature | -25°C ~ 70°C | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 83870103 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
83870103 is in stock for immediate shipping now. We are the distributor of Crouzet USA all series components. The condition of 83870103 is new and unused, you can buy 83870103 Crouzet USA with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 83870103.
