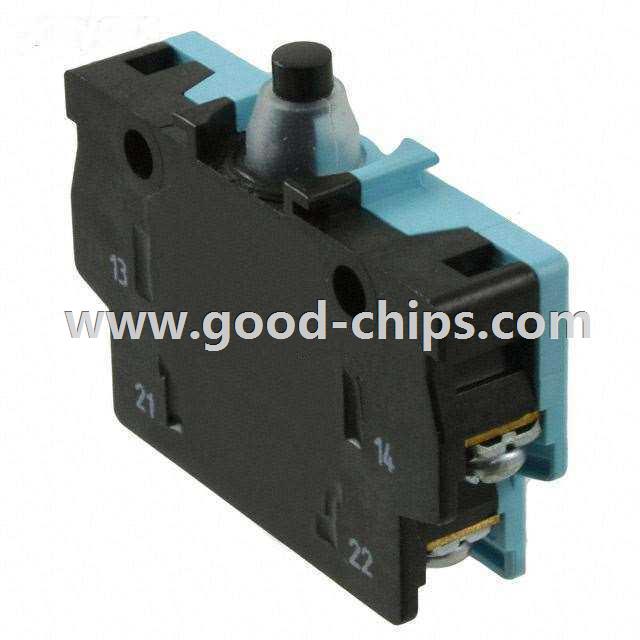

| Manufacturer Part Number: | 83241220 |
|---|---|
| Manufacturer: | Crouzet USA |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 9023 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACT DPST 100MA 30V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 83241220 Datasheet |
| Internal Part Number | 898-83241220 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Snap Action Switches Technology Specification | |
| Featured Product | PBX Secure Series of Sealed Switches Crouzet Sealed Snap Switches | |
| Online Catalog | PBX Series | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | Crouzet USA | |
| Series | PBX | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | DPST (1-NO, 1-NC) (DB) | |
| Switch Function | On-Mom, Off-Mom | |
| Current Rating | 100mA (AC/DC) | |
| Voltage Rating - AC | 30V | |
| Voltage Rating - DC | 30V | |
| Actuator Type | Round (Pin Plunger) | |
| Mounting Type | Chassis Mount | |
| Termination Style | Screw Terminal | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Features | - | |
| Operating Force, Torque | 459gf | |
| Release Force | - | |
| Pretravel | - | |
| Differential Travel | 0.040" (1.0mm) | |
| Overtravel | - | |
| Operating Position | 0.260" (6.6mm) | |
| Mechanical Life | 4,000,000 Cycles | |
| Electrical Life | - | |
| Operating Temperature | -50°C ~ 85°C | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 83241220 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
83241220 is in stock for immediate shipping now. We are the distributor of Crouzet USA all series components. The condition of 83241220 is new and unused, you can buy 83241220 Crouzet USA with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 83241220.
