Manufacturer Part Number: | 8315-6003 |
---|---|
Manufacturer: | 3M |
Product Category: | D-Sub Connectors |
Available Quantity: | 9092 Pieces |
Unit Price: | Quote by Email |

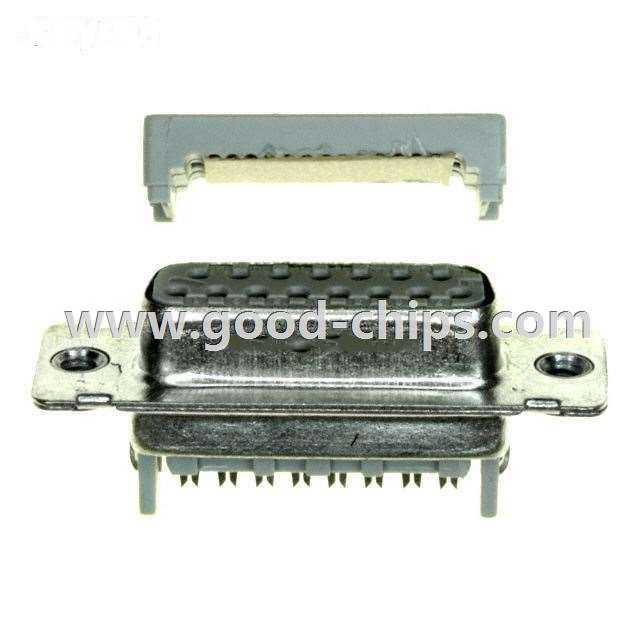

Description: | 15 Position D-Sub Receptacle, Female Sockets Connector, Panel Mount IDC, Ribbon Cable |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 8315-6003 Datasheet |
Internal Part Number | 898-8315-6003 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Input/Output Connector Systems Primer IDC Wiremount Connectors Primer | |
Featured Product | Ribbon Cable Assemblies 8200 and 8300 DSub Socket and Plug Series | |
3D Model | 8309-6003.igs 8309-6003.stp 8309-6003.x_t | |
PCN Assembly/Origin | 8215,8315 Series 29/Jul/2015 | |
Online Catalog | 8300 Series | |
Category | Connectors, Interconnects | |
Family | D-Sub Connectors | |
Manufacturer | 3M | |
Series | 8300 | |
Packaging | Tray | |
Part Status | Active | |
Connector Style | D-Sub | |
Connector Type | Receptacle, Female Sockets | |
Number of Positions | 15 | |
Number of Rows | 2 | |
Shell Size, Connector Layout | 2 (DA, A) | |
Contact Type | Signal | |
Mounting Type | Panel Mount | |
Flange Feature | Housing/Shell (4-40) | |
Termination | IDC, Ribbon Cable | |
Features | Feed Through | |
Shell Material, Finish | Steel, Tin Plated | |
Contact Finish | Gold | |
Contact Finish Thickness | 30µin (0.76µm) | |
Ingress Protection | - | |
Operating Temperature | -55°C ~ 105°C | |
Voltage Rating | - | |
Current Rating | 1A | |
Housing Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | |
Color | Gray | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 8315-6003 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
8315-6003 is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 8315-6003 is new and unused, you can buy 8315-6003 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 8315-6003.
