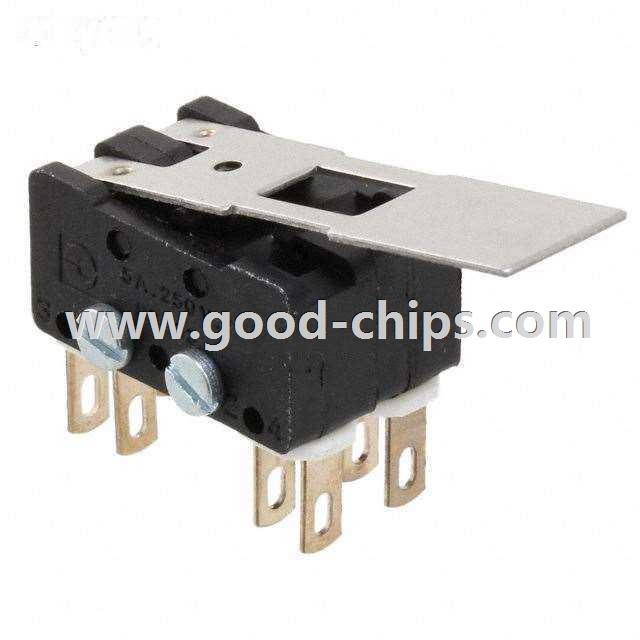

| Manufacturer Part Number: | 83133301 |
|---|---|
| Manufacturer: | Crouzet USA |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACTION DPDT 5A 125V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 83133301 Datasheet |
| Internal Part Number | 898-83133301 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Declaration of Conformity | |
| Product Training Modules | Snap Action Switches Technology Specification | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | Crouzet USA | |
| Series | 83133 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | DPDT-DB | |
| Switch Function | On-Mom | |
| Current Rating | 5A (AC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | - | |
| Actuator Type | Lever, Straight | |
| Mounting Type | Chassis Mount | |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) | |
| Ingress Protection | - | |
| Features | Gang Operation | |
| Operating Force, Torque | 82gf | |
| Release Force | 16gf | |
| Pretravel | 0.170" (4.3mm) | |
| Differential Travel | 0.080" (2.0mm) | |
| Overtravel | - | |
| Operating Position | 0.345" (8.8mm) | |
| Mechanical Life | 10,000,000 Cycles | |
| Electrical Life | - | |
| Operating Temperature | -20°C ~ 125°C | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 83133301 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
83133301 is in stock for immediate shipping now. We are the distributor of Crouzet USA all series components. The condition of 83133301 is new and unused, you can buy 83133301 Crouzet USA with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 83133301.
