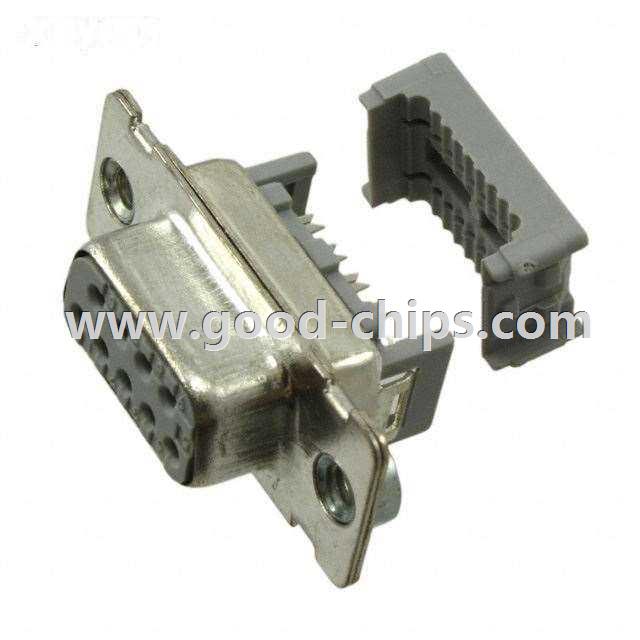

Manufacturer Part Number:8309-8003
Manufacturer:
Product Category:D-Sub Connectors
Available Quantity:9358 Pieces
Unit Price:Quote by Email
Description:9 Position D-Sub Receptacle, Female Sockets Connector, Panel Mount IDC, Ribbon Cable
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 8309-8003 Datasheet
8309-8003´s Parameters
Internal Part Number898-8309-8003
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesInput/Output Connector Systems Primer
IDC Wiremount Connectors Primer
Featured Product8200 and 8300 DSub Socket and Plug Series
Online Catalog 8300 Series
CategoryConnectors, Interconnects
FamilyD-Sub Connectors
Manufacturer3M
Series8300
PackagingBulk
Part StatusActive
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Number of Positions9
Number of Rows2
Shell Size, Connector Layout1 (DE, E)
Contact TypeSignal
Mounting TypePanel Mount
Flange FeatureHousing/Shell (4-40)
TerminationIDC, Ribbon Cable
FeaturesFeed Through
Shell Material, FinishSteel, Tin Plated
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
Ingress Protection-
Operating Temperature-55°C ~ 105°C
Voltage Rating-
Current Rating1A
Housing MaterialPolybutylene Terephthalate (PBT), Polyester, Glass Filled
ColorGray
Standard Package 200
Weight0.001 KG
ApplicationEmail for details
Replacement Part8309-8003
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

8309-8003 is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 8309-8003 is new and unused, you can buy 8309-8003 3M with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 8309-8003.
