Manufacturer Part Number: | 83-1SP-15RFX |
---|---|
Manufacturer: | Amphenol-RF Division |
Product Category: | Coaxial Connectors (RF) |
Available Quantity: | 9564 Pieces |
Unit Price: | Quote by Email |

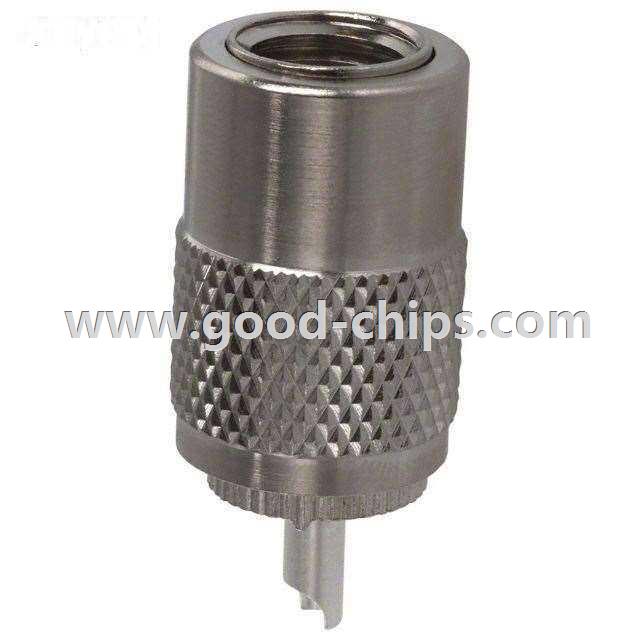

Description: | UHF Connector Plug, Male Pin Non-Constant Free Hanging (In-Line) Solder |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 83-1SP-15RFX Datasheet |
Internal Part Number | 898-83-1SP-15RFX | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | UHF, RFX | |
Category | Connectors, Interconnects | |
Family | Coaxial Connectors (RF) | |
Manufacturer | Amphenol-RF Division | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Connector Style | UHF | |
Connector Type | Plug, Male Pin | |
Contact Termination | Solder | |
Shield Termination | Solder | |
Impedance | Non-Constant | |
Mounting Type | Free Hanging (In-Line) | |
Cable Group | RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, 393 | |
Fastening Type | Threaded | |
Frequency - Max | 300MHz | |
Features | PL-259 | |
Housing Color | Silver | |
Ingress Protection | - | |
Body Material | Brass | |
Body Finish | Nickel | |
Center Contact Material | Brass | |
Center Contact Plating | Silver | |
Dielectric Material | Phenol Formaldehyde (Phenolic) | |
Voltage Rating | 500V | |
Operating Temperature | - | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 83-1SP-15RFX | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
83-1SP-15RFX is in stock for immediate shipping now. We are the distributor of Amphenol-RF Division all series components. The condition of 83-1SP-15RFX is new and unused, you can buy 83-1SP-15RFX Amphenol-RF Division with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 83-1SP-15RFX.
