| Manufacturer Part Number: | 8266 |
|---|---|
| Manufacturer: | Keystone Electronics |
| Product Category: | Terminals - Spade Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

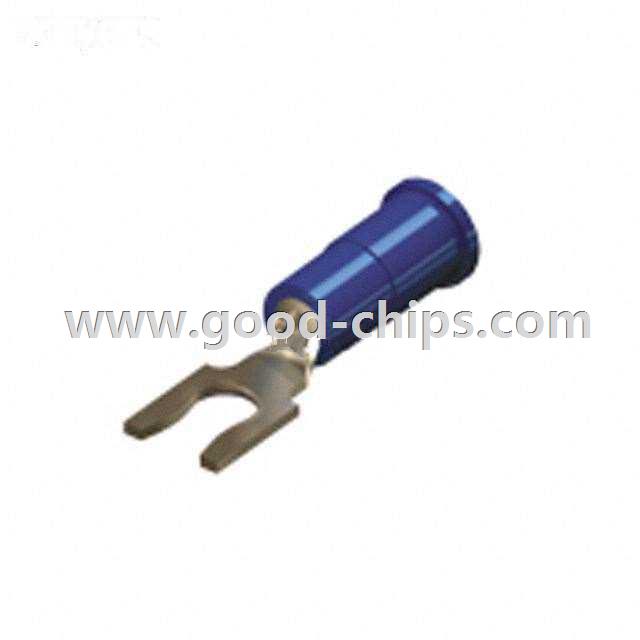

| Description: | Blue 6 Stud Spade Terminal Connector Crimp 14-16 AWG |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 8266 Datasheet |
| Internal Part Number | 898-8266 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | Terminals - Spade Connectors | |
| Manufacturer | Keystone Electronics | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Terminal Type | Spring, Snap | |
| Stud/Tab Size | 6 Stud | |
| Width - Outer Edges | 0.250" (6.35mm) | |
| Length - Overall | 0.700" (17.78mm) | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Crimp | |
| Wire Gauge | 14-16 AWG | |
| Insulation | Insulated | |
| Features | - | |
| Color | Blue | |
| Contact Finish | Tin | |
| Contact Material | Copper, ETP | |
| Insulation Diameter | 0.170" (4.32mm) | |
| Material - Insulation | Vinyl | |
| Length - Ring Center to Termination | 0.250" (6.35mm) | |
| Length - Termination | 0.450" (11.43mm) | |
| Tongue Inside Opening | - | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 8266 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
8266 is in stock for immediate shipping now. We are the distributor of Keystone Electronics all series components. The condition of 8266 is new and unused, you can buy 8266 Keystone Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 8266.
