826629-1

826629-1
Manufacturer Part Number:826629-1
Manufacturer:
Product Category:Rectangular Connectors - Headers, Male Pins
Available Quantity:9010 Pieces
Unit Price:Quote by Email

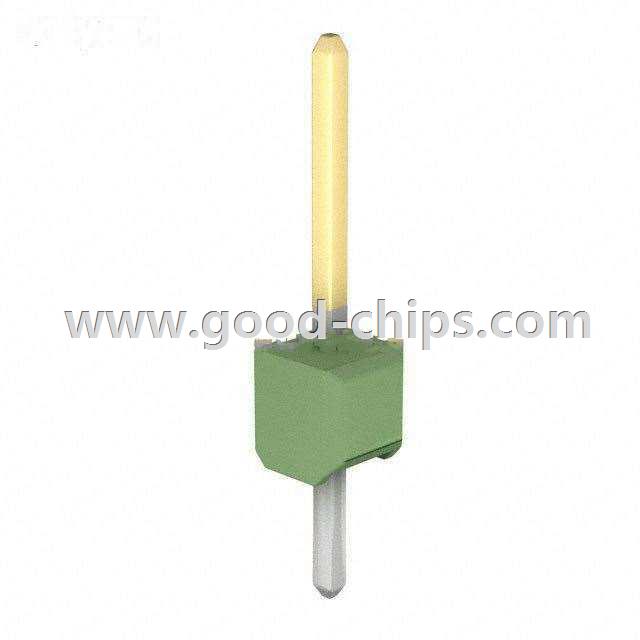

Description:1 Positions Header, Unshrouded, Breakaway Connector Through Hole Gold
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 826629-1 Datasheet
826629-1´s Parameters
Internal Part Number898-826629-1
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
3D Model826629-1.pdf
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Headers, Male Pins
ManufacturerTE Connectivity AMP Connectors
SeriesAMPMODU Mod II
PackagingBulk
Part StatusActive
Contact TypeMale Pin
Connector TypeHeader, Unshrouded, Breakaway
Number of Positions1
Number of Positions LoadedAll
Pitch-
Number of Rows1
Row Spacing-
Contact Mating Length0.264" (6.70mm)
Mounting TypeThrough Hole
TerminationSolder
Fastening Type-
Features-
Contact FinishGold
Contact Finish Thickness3.9µin (0.10µm)
ColorGreen
Standard Package 6,000
Weight0.001 KG
ApplicationEmail for details
Replacement Part826629-1
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

826629-1 is in stock for immediate shipping now. We are the distributor of TE Connectivity Potter & Brumfield Relays all series components. The condition of 826629-1 is new and unused, you can buy 826629-1 TE Connectivity Potter & Brumfield Relays with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 826629-1.
