8264

8264
Manufacturer Part Number:8264
Manufacturer:
Product Category:Terminals - Spade Connectors
Available Quantity:9010 Pieces
Unit Price:Quote by Email

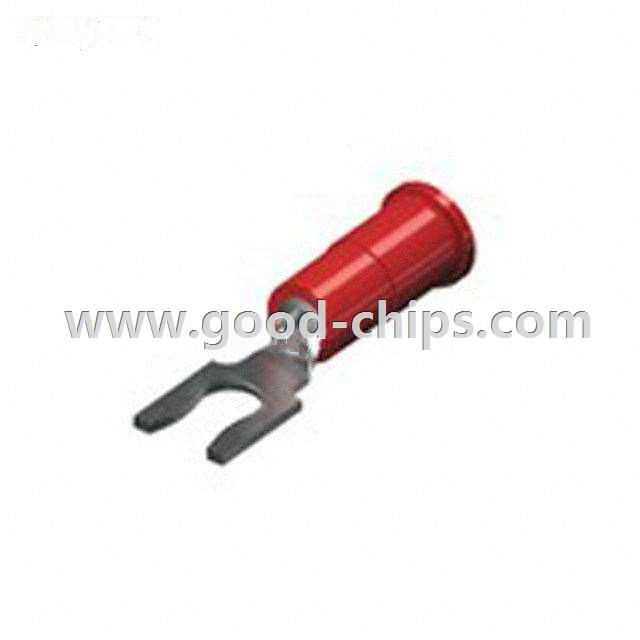

Description:Red 8 Stud Spade Terminal Connector Crimp 18-22 AWG
Lead Free Status / RoHS Status:Contains lead / RoHS non-compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 8264 Datasheet
8264´s Parameters
Internal Part Number898-8264
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryConnectors, Interconnects
FamilyTerminals - Spade Connectors
ManufacturerKeystone Electronics
Series-
PackagingBulk
Part StatusActive
Terminal TypeSpring, Snap
Stud/Tab Size8 Stud
Width - Outer Edges0.300" (7.62mm)
Length - Overall0.700" (17.78mm)
Mounting TypeFree Hanging (In-Line)
TerminationCrimp
Wire Gauge18-22 AWG
InsulationInsulated
Features-
ColorRed
Contact FinishTin
Contact MaterialCopper, ETP
Insulation Diameter0.145" (3.68mm)
Material - InsulationVinyl
Length - Ring Center to Termination0.250" (6.35mm)
Length - Termination0.450" (11.43mm)
Tongue Inside Opening-
Standard Package 100
Weight0.001 KG
ApplicationEmail for details
Replacement Part8264
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

8264 is in stock for immediate shipping now. We are the distributor of Keystone Electronics all series components. The condition of 8264 is new and unused, you can buy 8264 Keystone Electronics with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 8264.
