| Manufacturer Part Number: | 82400274 |
|---|---|
| Manufacturer: | Wurth Electronics Inc |
| Product Category: | TVS - Diodes |
| Available Quantity: | 12675 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 5VWM 9VC SC706L |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 82400274 Datasheet |
| Internal Part Number | 898-82400274 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | WE-TVS_High_Speed_SC70-6L.igs WE-TVS_High_Speed_SC70-6L.stp | |
| Online Catalog | WE-TVS, High Speed Series | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | Wurth Electronics Inc | |
| Series | WE-TVS | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Type | Steering (Rail to Rail) | |
| Unidirectional Channels | - | |
| Bidirectional Channels | 4 | |
| Voltage - Reverse Standoff (Typ) | 5V (Max) | |
| Voltage - Breakdown (Min) | 6V | |
| Voltage - Clamping (Max) @ Ipp | 9V | |
| Current - Peak Pulse (10/1000µs) | 6A (8/20µs) | |
| Power - Peak Pulse | - | |
| Power Line Protection | Yes | |
| Applications | Ethernet | |
| Capacitance @ Frequency | - | |
| Operating Temperature | -55°C ~ 85°C (TJ) | |
| Mounting Type | Surface Mount | |

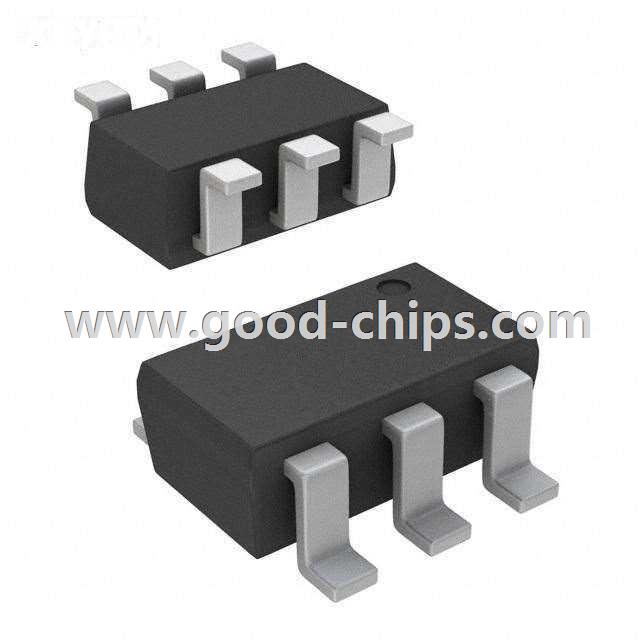

| Package / Case | 6-TSSOP, SC-88, SOT-363 | |
| Supplier Device Package | SC-70-6 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 82400274 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
82400274 is in stock for immediate shipping now. We are the distributor of Wurth Electronics Inc all series components. The condition of 82400274 is new and unused, you can buy 82400274 Wurth Electronics Inc with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 82400274.
