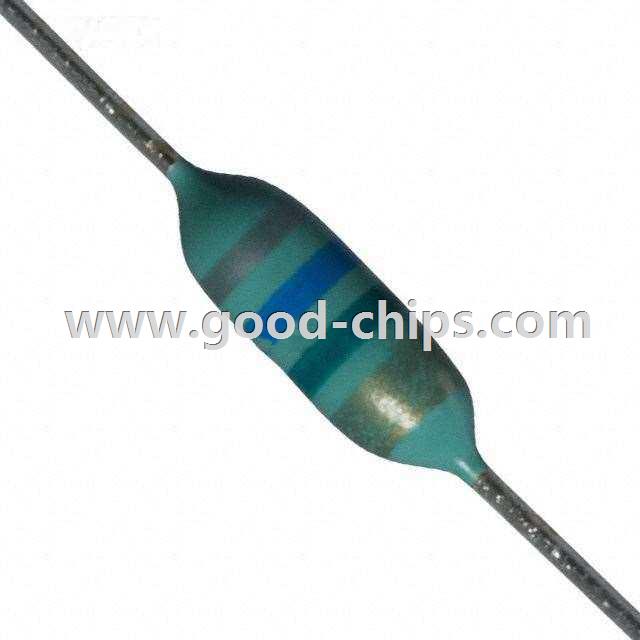

8230-14

8230-14
Manufacturer Part Number:8230-14
Manufacturer:
Product Category:Fixed Inductors
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:560nH Unshielded Wirewound Inductor 495mA 500 mOhm Max Axial
Lead Free Status / RoHS Status:Contains lead / RoHS non-compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 8230-14 Datasheet
8230-14´s Parameters
Internal Part Number898-8230-14
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryInductors, Coils, Chokes
FamilyFixed Inductors
ManufacturerBourns Inc.
Series8230
PackagingBulk
Part StatusObsolete
TypeWirewound
Material - CorePhenolic
Inductance560nH
Tolerance±10%
Current Rating495mA
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)500 mOhm Max
Q @ Freq30 @ 25MHz
Frequency - Self Resonant300MHz
Ratings-
Operating Temperature-55°C ~ 105°C
Frequency - Test25MHz
Mounting TypeThrough Hole
Package / CaseAxial
Size / Dimension0.120" Dia x 0.300" L (3.05mm x 7.62mm)
Height - Seated (Max)-
Standard Package 1,000
Weight0.001 KG
ApplicationEmail for details
Replacement Part8230-14
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

8230-14 is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 8230-14 is new and unused, you can buy 8230-14 Bourns Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 8230-14.
