| Manufacturer Part Number: | 823-S1-004-30-015101 |
|---|---|
| Manufacturer: | Preci-Dip |
| Product Category: | Rectangular Connectors - Spring Loaded |
| Available Quantity: | 9270 Pieces |
| Unit Price: | Quote by Email |

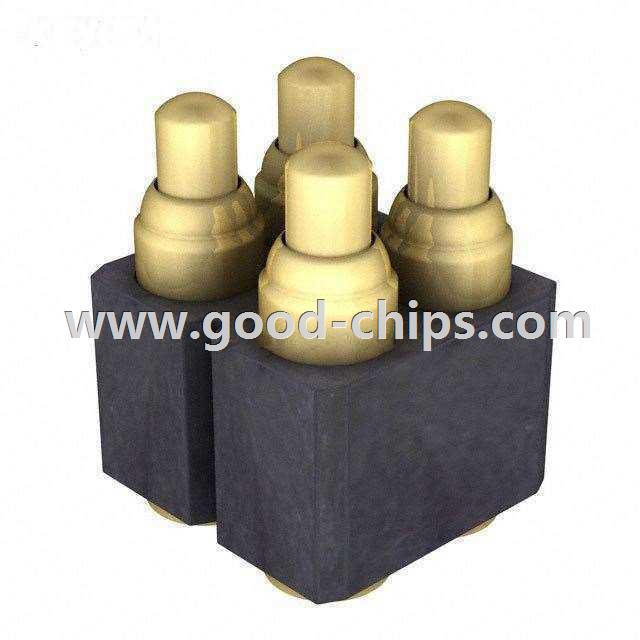

| Description: | 4 Position Spring Piston Connector Surface Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 823-S1-004-30-015101 Datasheet |
| Internal Part Number | 898-823-S1-004-30-015101 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 823 Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Spring Loaded | |
| Manufacturer | Preci-Dip | |
| Series | 823 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Piston | |
| Number of Contacts | 4 | |
| Pitch | 0.079" (2.00mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.079" (2.00mm) | |
| Mounting Type | Surface Mount | |
| Material | Brass Alloy | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 19.7µin (0.50µm) | |
| Standard Package | 260 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 823-S1-004-30-015101 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
823-S1-004-30-015101 is in stock for immediate shipping now. We are the distributor of Preci-Dip all series components. The condition of 823-S1-004-30-015101 is new and unused, you can buy 823-S1-004-30-015101 Preci-Dip with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 823-S1-004-30-015101.
