| Manufacturer Part Number: | 8209 |
|---|---|
| Manufacturer: | Keystone Electronics |
| Product Category: | Terminals - Ring Connectors |
| Available Quantity: | 10485 Pieces |
| Unit Price: | Quote by Email |

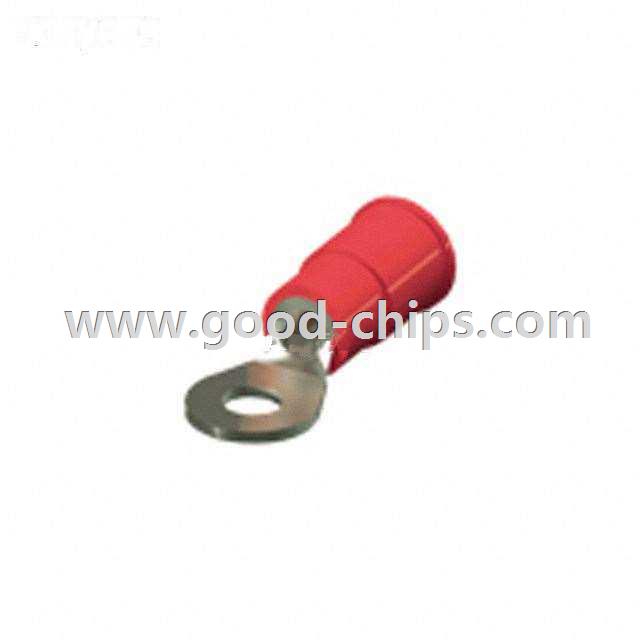

| Description: | Ring Terminal Connector 6 Stud Circular 18-22 AWG Crimp |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 8209 Datasheet |
| Internal Part Number | 898-8209 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Ring Terminals | |
| Category | Connectors, Interconnects | |
| Family | Terminals - Ring Connectors | |
| Manufacturer | Keystone Electronics | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Terminal Type | Circular | |
| Stud/Tab Size | 6 Stud | |
| Thickness | 0.030" (0.76mm) | |
| Width - Outer Edges | 0.250" (6.35mm) | |
| Length - Overall | 0.800" (20.32mm) | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Crimp | |
| Wire Gauge | 18-22 AWG | |
| Insulation | Insulated | |
| Features | - | |
| Color | Red | |
| Contact Material | Copper, ETP | |
| Contact Finish | Tin | |
| Insulation Diameter | 0.145" (3.68mm) | |
| Material - Insulation | Vinyl | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 8209 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
8209 is in stock for immediate shipping now. We are the distributor of Keystone Electronics all series components. The condition of 8209 is new and unused, you can buy 8209 Keystone Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 8209.
