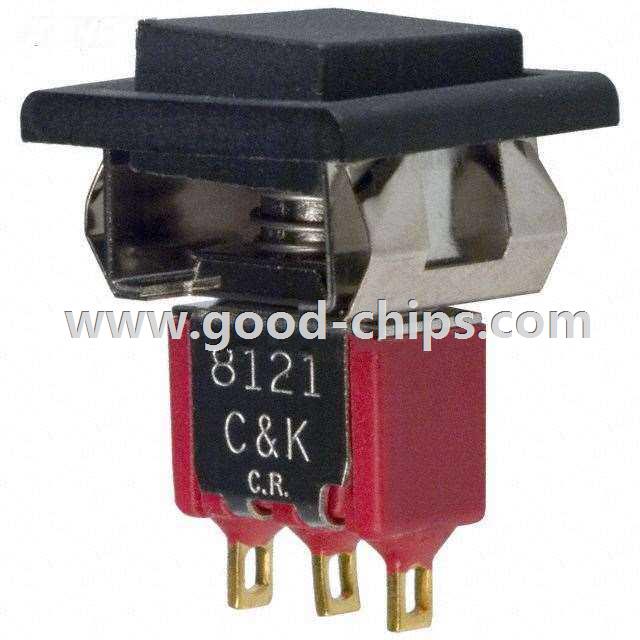

| Manufacturer Part Number: | 8121J81ZGE22 |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Pushbutton Switches |
| Available Quantity: | 9166 Pieces |
| Unit Price: | Quote by Email |
| Description: | Pushbutton Switch SPDT Standard Panel Mount, Snap-In |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 8121J81ZGE22 Datasheet |
| Internal Part Number | 898-8121J81ZGE22 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Illuminated Switches Introduction to Electromechanical Switches | |
| 3D Model | 812xJ81ZxEx2.stp 812xJ81ZxEx2.pdf | |
| PCN Assembly/Origin | Series Transfer 26/Nov/2012 | |
| Online Catalog | 8020 Series | |
| Category | Switches | |
| Family | Pushbutton Switches | |
| Manufacturer | C&K Components | |
| Series | 8020 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Standard | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 1A (AC/DC) | |
| Voltage Rating - AC | 120V | |
| Voltage Rating - DC | 28V | |
| Actuator Type | Square, Button | |
| Color - Actuator/Cap | Black | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Panel Mount, Snap-In | |
| Termination Style | Solder Lug | |
| Ingress Protection | - | |
| Features | Tactile Feedback | |
| Panel Cutout Dimensions | Rectangular - 15.24mm x 12.70mm | |
| Operating Temperature | -30°C ~ 75°C | |
| Mechanical Life | - | |
| Electrical Life | 60,000 Cycles | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 8121J81ZGE22 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
8121J81ZGE22 is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of 8121J81ZGE22 is new and unused, you can buy 8121J81ZGE22 C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 8121J81ZGE22.
