812-22-015-30-009101

812-22-015-30-009101
Manufacturer Part Number:812-22-015-30-009101
Manufacturer:
Product Category:Rectangular Connectors - Spring Loaded
Available Quantity:9010 Pieces
Unit Price:Quote by Email

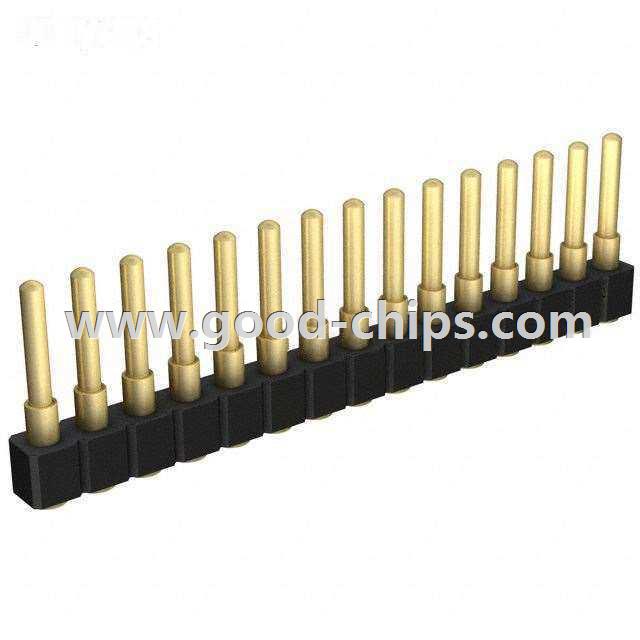

Description:15 Position Spring Piston Connector Surface Mount
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 812-22-015-30-009101 Datasheet
812-22-015-30-009101´s Parameters
Internal Part Number898-812-22-015-30-009101
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesSpring-Loaded Connectors
Featured ProductSpring-Loaded Connectors
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Spring Loaded
ManufacturerMill-Max Manufacturing Corp.
Series812
PackagingTube
Part StatusDiscontinued
Connector TypePiston
Number of Contacts15
Pitch0.100" (2.54mm)
Number of Rows1
Row Spacing-
Mounting TypeSurface Mount
MaterialCopper Alloy
Contact FinishGold
Contact Finish Thickness20µin (0.51µm)
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement Part812-22-015-30-009101
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

812-22-015-30-009101 is in stock for immediate shipping now. We are the distributor of Mill-Max Manufacturing Corp. all series components. The condition of 812-22-015-30-009101 is new and unused, you can buy 812-22-015-30-009101 Mill-Max Manufacturing Corp. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 812-22-015-30-009101.
