Manufacturer Part Number: | 811 |
---|---|
Manufacturer: | Adafruit Industries LLC |
Product Category: | Display Modules - LED Character and Numeric |
Available Quantity: | 9094 Pieces |
Unit Price: | Quote by Email |

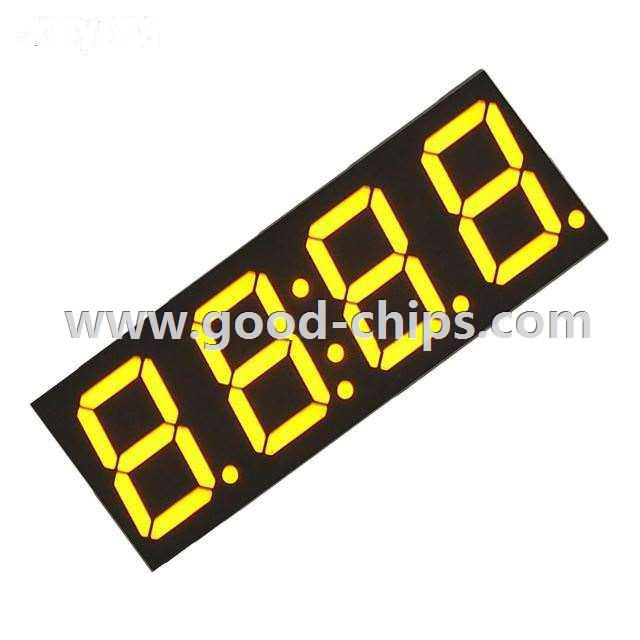

Description: | Character LED Display Module Yellow 7-Segment Clock 4 Character Common Cathode 2.1V 20mA 0.749" H x 1.978" W x 0.315" D (19.00mm x 50.20mm x 8.00mm) 14-DIP (0.600", 15.24mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 811 Datasheet |
Internal Part Number | 898-811 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | 0.56in 4-Digit 7-Segment Display | |
Category | Optoelectronics | |
Family | Display Modules - LED Character and Numeric | |
Manufacturer | Adafruit Industries LLC | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Number of Characters | 4 | |
Size / Dimension | 0.749" H x 1.978" W x 0.315" D (19.00mm x 50.20mm x 8.00mm) | |
Digit/Alpha Size | 0.56" (14.22mm) | |
Display Type | 7-Segment Clock | |
Common Pin | Common Cathode | |
Color | Yellow | |
Voltage - Forward (Vf) (Typ) | 2.1V | |
Current - Test | 20mA | |
Millicandela Rating | 14mcd | |
Wavelength - Peak | 590nm | |
Power Dissipation (Max) | 70mW | |
Package / Case | 14-DIP (0.600", 15.24mm) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 811 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
811 is in stock for immediate shipping now. We are the distributor of Adafruit Industries LLC all series components. The condition of 811 is new and unused, you can buy 811 Adafruit Industries LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 811.
