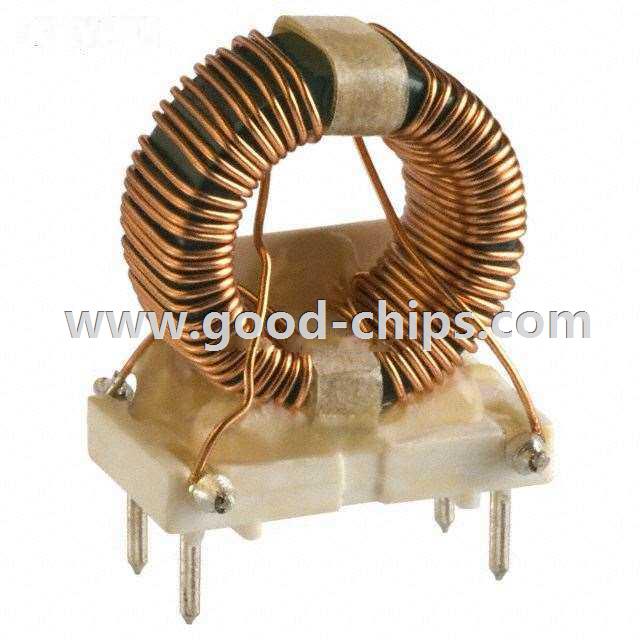

| Manufacturer Part Number: | 8102-RC |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 10347 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2.5mH @ 1kHz 2 Line Common Mode Choke Through Hole 2.4A DCR 90 mOhm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 8102-RC Datasheet |
| Internal Part Number | 898-8102-RC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 8102-RC.stp | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | 8100 Series | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | Bourns Inc. | |
| Series | 8100 | |
| Packaging | Tray | |
| Part Status | Active | |
| Filter Type | - | |
| Number of Lines | 2 | |
| Impedance @ Frequency | - | |
| Inductance @ Frequency | 2.5mH @ 1kHz | |
| Current Rating (Max) | 2.4A | |
| DC Resistance (DCR) (Max) | 90 mOhm | |
| Voltage Rating - DC | - | |
| Voltage Rating - AC | - | |
| Operating Temperature | -55°C ~ 105°C | |
| Ratings | - | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Through Hole | |
| Size / Dimension | 0.760" L x 0.425" W (19.30mm x 10.80mm) | |
| Height (Max) | 0.900" (22.86mm) | |
| Package / Case | Vertical, 4 PC Pin | |
| Standard Package | 315 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 8102-RC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
8102-RC is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 8102-RC is new and unused, you can buy 8102-RC Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 8102-RC.
