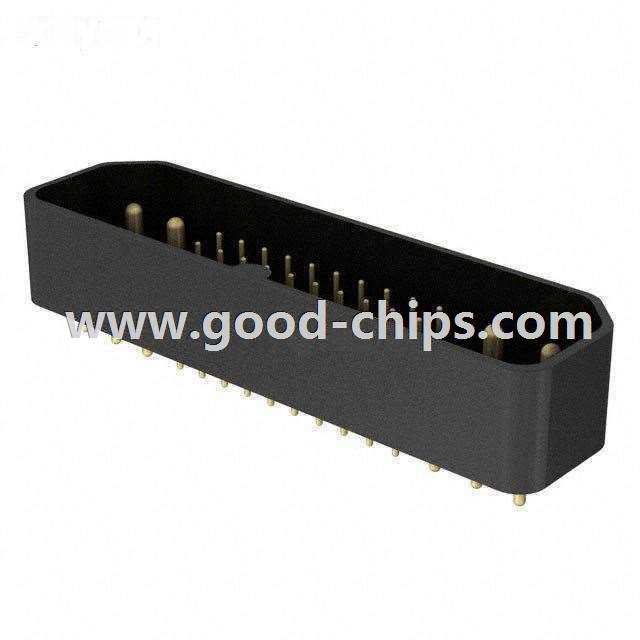

| Manufacturer Part Number: | 808-10-040-10-151000 |
|---|---|
| Manufacturer: | Mill-Max Manufacturing Corp. |
| Product Category: | Rectangular - Board to Board Connectors - Headers, Male Pins |
| Available Quantity: | 9043 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN SHRD 40POS T/H GOLD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 808-10-040-10-151000 Datasheet |
| Internal Part Number | 898-808-10-040-10-151000 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Combination Connectors for Signal and Power | |
| Online Catalog | 808 Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Headers, Male Pins | |
| Manufacturer | Mill-Max Manufacturing Corp. | |
| Series | 808 | |
| Packaging | Tube | |
| Part Status | Active | |
| Connector Type | Shrouded | |
| Number of Positions | 40 (30 + 10 Power) | |
| Number of Positions Loaded | All | |
| Pitch | - | |
| Number of Rows | - | |
| Row Spacing | - | |
| Height Stacking (Mating) | 0.415" (10.54mm) | |
| Molding Height Above Board | 0.375" (9.53mm) | |
| Contact Mating Length | - | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 10µin (0.25µm) | |
| Features | - | |
| Color | Black | |
| Standard Package | 7 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 808-10-040-10-151000 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
808-10-040-10-151000 is in stock for immediate shipping now. We are the distributor of Mill-Max Manufacturing Corp. all series components. The condition of 808-10-040-10-151000 is new and unused, you can buy 808-10-040-10-151000 Mill-Max Manufacturing Corp. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 808-10-040-10-151000.
