| Manufacturer Part Number: | 803115 |
|---|---|
| Manufacturer: | Bergquist |
| Product Category: | LED Thermal Products |
| Available Quantity: | 18311 Pieces |
| Unit Price: | Quote by Email |

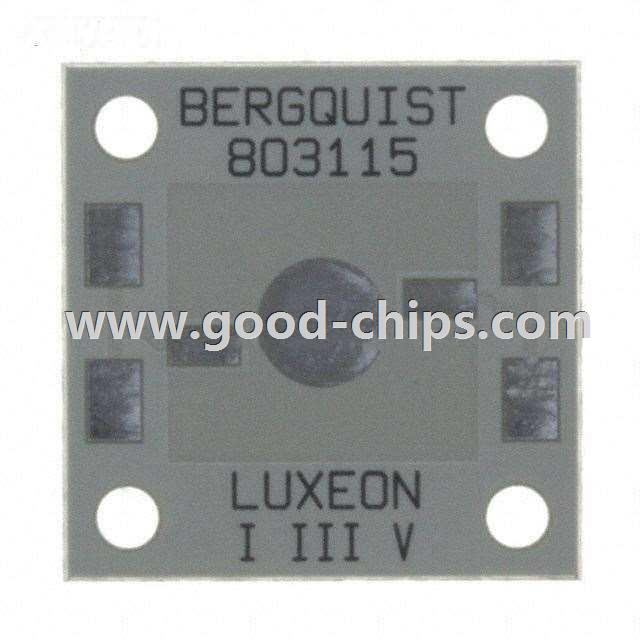

| Description: | BOARD LED IMS LUXEON I/III/V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 803115 Datasheet |
| Internal Part Number | 898-803115 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | LED Thermal Management | |
| Design Resources | Lighting Product Selector | |
| PCN Packaging | Henkel/Berquist Revised Brands 10/May/2016 | |
| Category | Optoelectronics | |
| Family | LED Thermal Products | |
| Manufacturer | Bergquist | |
| Series | Thermal Clad® IMS® | |
| Packaging | 1 per Pkg | |
| Part Status | Active | |
| Type | Thermal Clad Board | |
| For Use With/Related Products | Lumileds™ LUXEON® I, III, and V | |
| Shape | Square | |
| Standard Package | 391 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 803115 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
803115 is in stock for immediate shipping now. We are the distributor of Bergquist all series components. The condition of 803115 is new and unused, you can buy 803115 Bergquist with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 803115.
