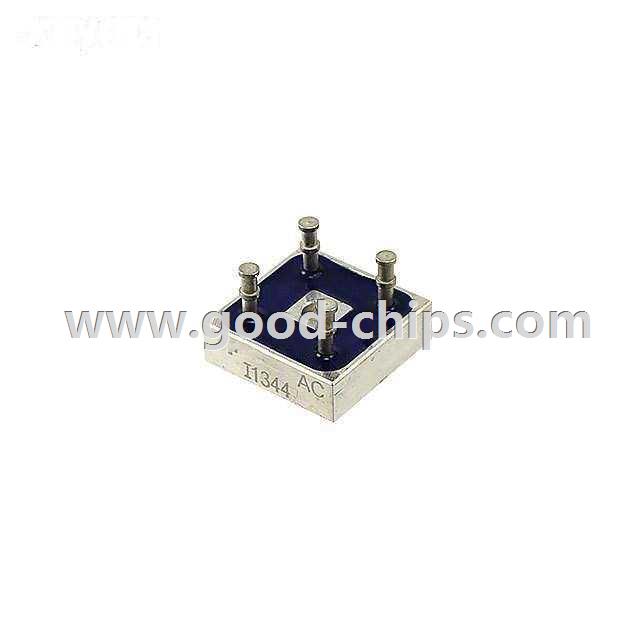

| Manufacturer Part Number: | 803-2 |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Diodes - Bridge Rectifiers |
| Available Quantity: | 9017 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE BRIDGE 22.5A SMD |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 803-2 Datasheet |
| Internal Part Number | 898-803-2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Chassis Mount Bridge Rectifiers | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Bridge Rectifiers | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Diode Type | Single Phase | |
| Voltage - Peak Reverse (Max) | 100V | |
| Current - DC Forward (If) (Max) | * | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-Square, MB | |
| Supplier Device Package | MB | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 803-2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
803-2 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of 803-2 is new and unused, you can buy 803-2 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 803-2.
