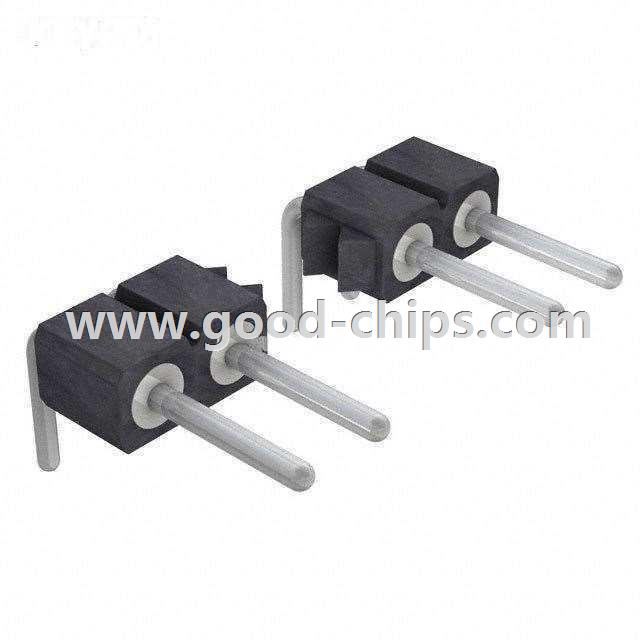

Manufacturer Part Number: | 800-80-005-20-004101 |
---|---|
Manufacturer: | Preci-Dip |
Product Category: | Rectangular Connectors - Headers, Male Pins |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 5 Positions Header, Unshrouded Connector 0.100" (2.54mm) Through Hole, Right Angle Tin |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 800-80-005-20-004101 Datasheet |
Internal Part Number | 898-800-80-005-20-004101 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | RoHS Declaration | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Headers, Male Pins | |
Manufacturer | Preci-Dip | |
Series | 800 | |
Packaging | Bulk | |
Part Status | Active | |
Contact Type | Male Pin | |
Connector Type | Header, Unshrouded | |
Number of Positions | 5 | |
Number of Positions Loaded | All | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 1 | |
Row Spacing | - | |
Contact Mating Length | 0.195" (4.95mm) | |
Mounting Type | Through Hole, Right Angle | |
Termination | Solder | |
Fastening Type | - | |
Features | - | |
Contact Finish | Tin | |
Contact Finish Thickness | - | |
Color | Black | |
Standard Package | 1,270 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 800-80-005-20-004101 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
800-80-005-20-004101 is in stock for immediate shipping now. We are the distributor of Preci-Dip all series components. The condition of 800-80-005-20-004101 is new and unused, you can buy 800-80-005-20-004101 Preci-Dip with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 800-80-005-20-004101.
