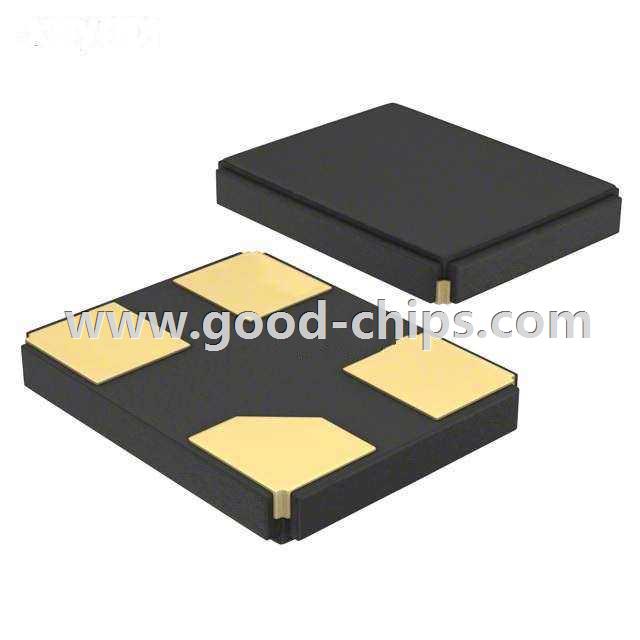

| Manufacturer Part Number: | 7S-18.432MAAE-T |
|---|---|
| Manufacturer: | TXC CORPORATION |
| Product Category: | Crystals |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 18.432MHz ±30ppm Crystal 12pF 100 Ohm -20°C ~ 70°C Surface Mount 4-SMD, No Lead (DFN, LCC) |
| Lead Free Status / RoHS Status: | Lead free by exemption / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 7S-18.432MAAE-T Datasheet |
| Internal Part Number | 898-7S-18.432MAAE-T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Crystals and Oscillators | |
| Family | Crystals | |
| Manufacturer | TXC CORPORATION | |
| Series | 7S | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | MHz Crystal | |
| Frequency | 18.432MHz | |
| Frequency Stability | ±30ppm | |
| Frequency Tolerance | ±30ppm | |
| Load Capacitance | 12pF | |
| ESR (Equivalent Series Resistance) | 100 Ohm | |
| Operating Mode | Fundamental | |
| Operating Temperature | -20°C ~ 70°C | |
| Ratings | - | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-SMD, No Lead (DFN, LCC) | |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | |
| Height | 0.033" (0.85mm) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 7S-18.432MAAE-T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
7S-18.432MAAE-T is in stock for immediate shipping now. We are the distributor of TXC CORPORATION all series components. The condition of 7S-18.432MAAE-T is new and unused, you can buy 7S-18.432MAAE-T TXC CORPORATION with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 7S-18.432MAAE-T.
