| Manufacturer Part Number: | 79FR56M-TR-RC |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

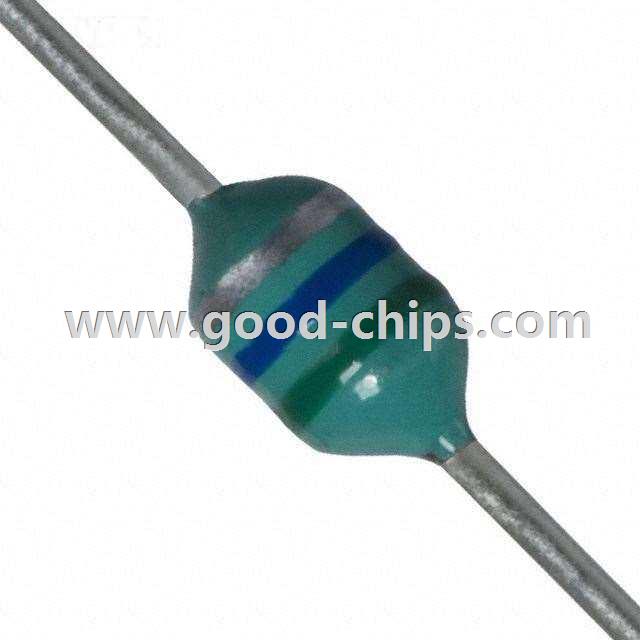

| Description: | 560nH Unshielded Wirewound Inductor 320mA 610 mOhm Max Axial |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 79FR56M-TR-RC Datasheet |
| Internal Part Number | 898-79FR56M-TR-RC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | 79F Series 28/Nov/2011 | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Bourns Inc. | |
| Series | 79F | |
| Packaging | Tape & Box (TB) | |
| Part Status | Obsolete | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 560nH | |
| Tolerance | ±20% | |
| Current Rating | 320mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 610 mOhm Max | |
| Q @ Freq | 35 @ 25MHz | |
| Frequency - Self Resonant | 150MHz | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 105°C | |
| Frequency - Test | 25MHz | |
| Mounting Type | Through Hole | |
| Package / Case | Axial | |
| Size / Dimension | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | |
| Height - Seated (Max) | - | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 79FR56M-TR-RC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
79FR56M-TR-RC is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 79FR56M-TR-RC is new and unused, you can buy 79FR56M-TR-RC Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 79FR56M-TR-RC.
