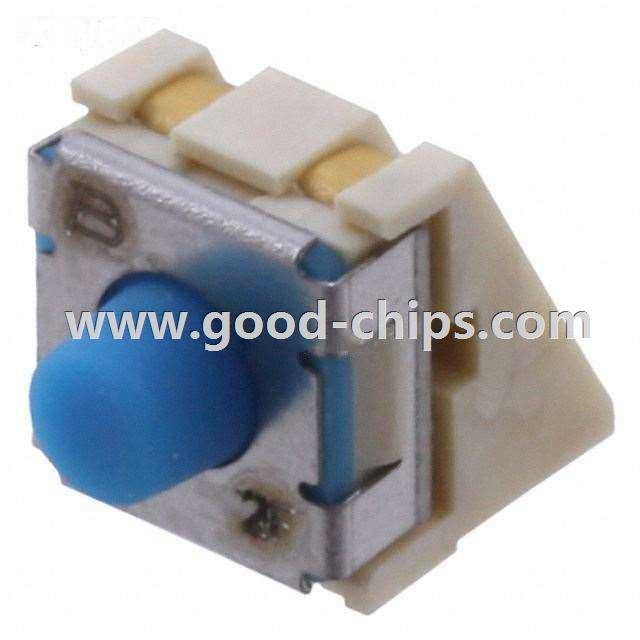

| Manufacturer Part Number: | 7914S-1-000E |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Tactile Switches |
| Available Quantity: | 9610 Pieces |
| Unit Price: | Quote by Email |
| Description: | Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 7914S-1-000E Datasheet |
| Internal Part Number | 898-7914S-1-000E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 7914 S Material Declaration | |
| 3D Model | 7914S-1-000.stp | |
| PCN Design/Specification | 7914S Carrier Tape 06/Oct/2011 | |
| Online Catalog | 7914 Series | |
| Category | Switches | |
| Family | Tactile Switches | |
| Manufacturer | Bourns Inc. | |
| Series | 7914 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Circuit | SPST-NO | |
| Switch Function | Off-Mom | |
| Contact Rating @ Voltage | 0.1A @ 16VAC/DC | |
| Actuator Type | Standard | |
| Mounting Type | Surface Mount, Right Angle | |
| Actuator Height off PCB, from Pins | - | |
| Actuator Orientation | Side Actuated | |
| Termination Style | SMD (SMT) Tab | |
| Outline | 5.44mm x 5.00mm | |
| Illumination | Non-Illuminated | |
| Illumination Voltage (Nominal) | - | |
| Illumination Type, Color | - | |
| Operating Force | 300gf | |
| Ingress Protection | - | |
| Features | - | |
| Actuator Material | Silicon Rubber | |
| Switch Travel | - | |
| Mechanical Life | 100,000 Cycles | |
| Operating Temperature | -55°C ~ 125°C | |
| Standard Package | 200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 7914S-1-000E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
7914S-1-000E is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 7914S-1-000E is new and unused, you can buy 7914S-1-000E Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 7914S-1-000E.
