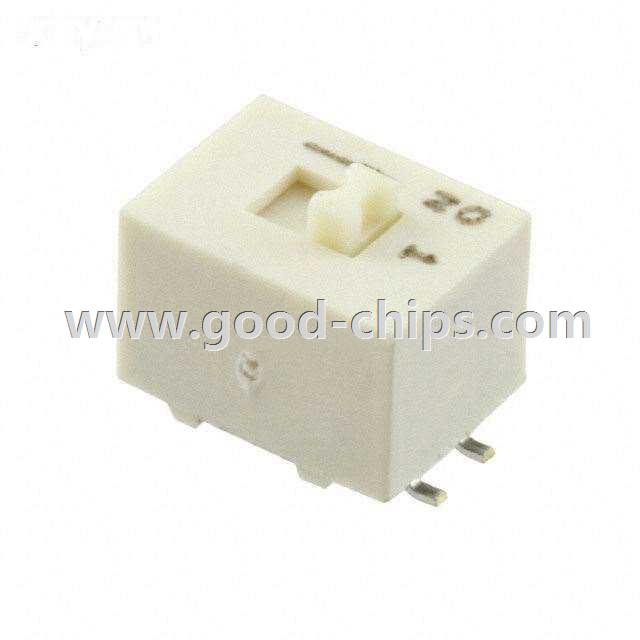

Manufacturer Part Number: | 78HF01GWRT |
---|---|
Manufacturer: | Grayhill Inc. |
Product Category: | DIP Switches |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Dip Switch DPST 1 Position Surface Mount Slide (Standard) Actuator 150mA 30VDC |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 78HF01GWRT Datasheet |
Internal Part Number | 898-78HF01GWRT | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | 78H Series | |
Category | Switches | |
Family | DIP Switches | |
Manufacturer | Grayhill Inc. | |
Series | 78H | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Circuit | DPST | |
Number of Positions | 1 | |
Current Rating | 150mA | |
Voltage Rating | 30VDC | |
Actuator Type | Slide (Standard) | |
Actuator Level | Raised | |
Contact Material | Copper Alloy | |
Contact Finish | Gold | |
Height Above Board | 0.327" (8.30mm) | |
Mounting Type | Surface Mount | |
Termination Style | Gull Wing | |
Pitch | 0.100" (2.54mm), Full | |
Washable | No | |
Features | - | |
Body Material | Thermoplastic | |
Length | 0.280" (7.11mm) | |
Operating Temperature | -40°C ~ 85°C | |
Mechanical Life | 2,000 Cycles | |
Electrical Life | 2,000 Cycles | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 78HF01GWRT | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
78HF01GWRT is in stock for immediate shipping now. We are the distributor of Grayhill Inc. all series components. The condition of 78HF01GWRT is new and unused, you can buy 78HF01GWRT Grayhill Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 78HF01GWRT.
