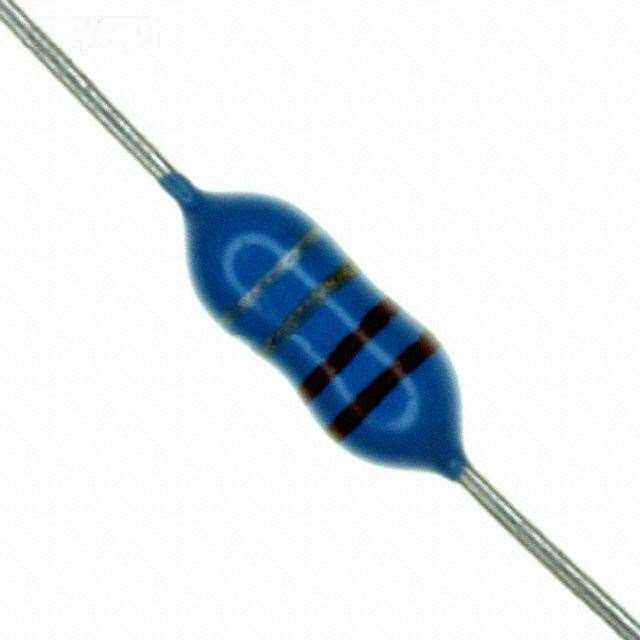

Manufacturer Part Number: | 78F2R2K |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 2.2µH Unshielded Wirewound Inductor 395mA 280 mOhm Max Axial |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 78F2R2K Datasheet |
Internal Part Number | 898-78F2R2K | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | UV-Cured Material April/2008 | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Bourns Inc. | |
Series | 78F | |
Packaging | Bulk | |
Part Status | Obsolete | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 2.2µH | |
Tolerance | ±10% | |
Current Rating | 395mA | |
Current - Saturation | - | |
Shielding | Unshielded | |
DC Resistance (DCR) | 280 mOhm Max | |
Q @ Freq | 50 @ 7.9MHz | |
Frequency - Self Resonant | 110MHz | |
Ratings | - | |
Operating Temperature | -55°C ~ 105°C | |
Frequency - Test | 7.9MHz | |
Mounting Type | Through Hole | |
Package / Case | Axial | |
Size / Dimension | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | |
Height - Seated (Max) | - | |
Standard Package | 5,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 78F2R2K | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
78F2R2K is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 78F2R2K is new and unused, you can buy 78F2R2K Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 78F2R2K.
