| Manufacturer Part Number: | 782963820 |
|---|---|
| Manufacturer: | Wurth Electronics Inc |
| Product Category: | Ferrite Beads and Chips |
| Available Quantity: | 11010 Pieces |
| Unit Price: | Quote by Email |

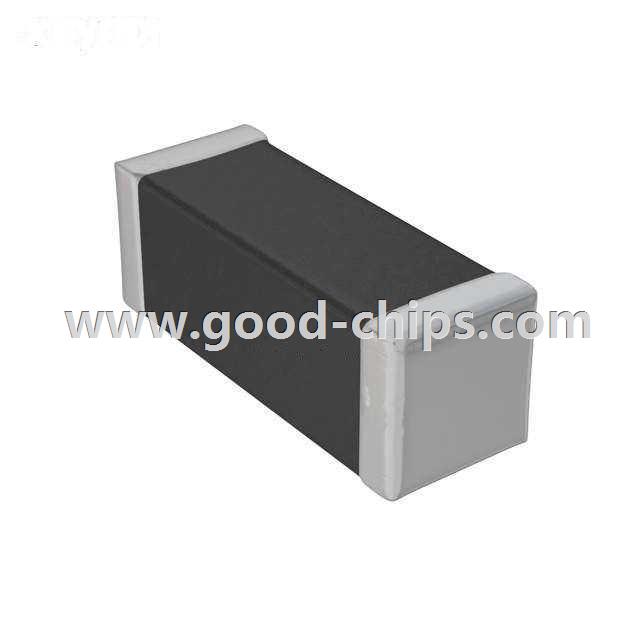

| Description: | 82 Ohm Impedance Ferrite Bead 1806 (4516 Metric) Surface Mount Signal Line 3.5A 1 Lines 20 mOhm Max DCR -55°C ~ 125°C |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 782963820 Datasheet |
| Internal Part Number | 898-782963820 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Wurth - Q+ Products | |
| 3D Model | WE-CBA_1806_CBA.igs WE-CBA_1806_CBA.stp WE-CBA_1806_CBA.wrl | |
| PCN Packaging | WE-CBA 782yyy 01/Mar/2016 | |
| Online Catalog | Automotive, AEC-Q200, WE-CBA Series | |
| Category | Filters | |
| Family | Ferrite Beads and Chips | |
| Manufacturer | Wurth Electronics Inc | |
| Series | WE-CBA | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Filter Type | Signal Line | |
| Number of Lines | 1 | |
| Impedance @ Frequency | 82 Ohm @ 100MHz | |
| Current Rating (Max) | 3.5A | |
| DC Resistance (DCR) (Max) | 20 mOhm | |
| Ratings | AEC-Q200 | |
| Operating Temperature | -55°C ~ 125°C | |
| Package / Case | 1806 (4516 Metric) | |
| Mounting Type | Surface Mount | |
| Height (Max) | 0.071" (1.80mm) | |
| Size / Dimension | 0.177" L x 0.063" W (4.50mm x 1.60mm) | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 782963820 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
782963820 is in stock for immediate shipping now. We are the distributor of Wurth Electronics Inc all series components. The condition of 782963820 is new and unused, you can buy 782963820 Wurth Electronics Inc with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 782963820.
