| Manufacturer Part Number: | 78208-115HLF |
|---|---|
| Manufacturer: | Amphenol FCI |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 9352 Pieces |
| Unit Price: | Quote by Email |

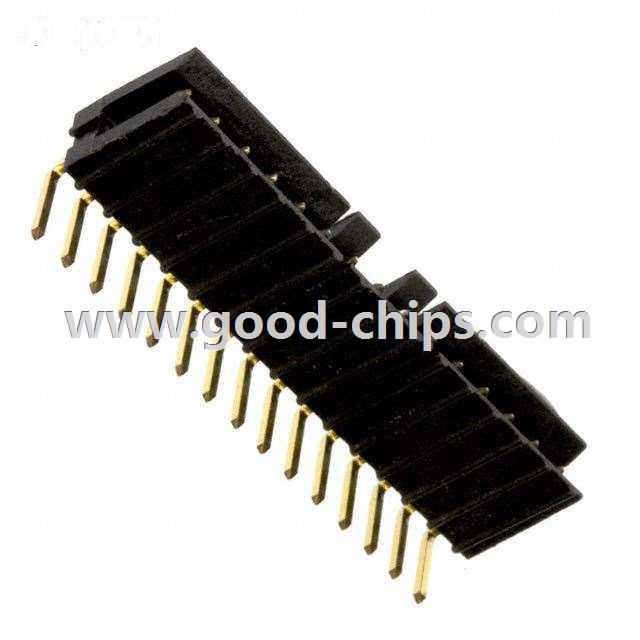

| Description: | 15 Positions Header, Shrouded Connector 0.100" (2.54mm) Through Hole, Right Angle Gold or Gold, GXT™ |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 78208-115HLF Datasheet |
| Internal Part Number | 898-78208-115HLF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Gold Plating 16/Apr/2012 Resin 19/Apr/2013 Resin Rev 19/Apr/2014 | |
| Online Catalog | Mini-PV™, Basics+ Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | Amphenol FCI | |
| Series | Mini-PV™, Basics+ | |
| Packaging | Bulk | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 15 | |
| Number of Positions Loaded | All | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Contact Mating Length | 0.230" (5.84mm) | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Fastening Type | Friction Lock | |
| Features | - | |
| Contact Finish | Gold or Gold, GXT™ | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Color | Black | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 78208-115HLF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
78208-115HLF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 78208-115HLF is new and unused, you can buy 78208-115HLF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 78208-115HLF.
