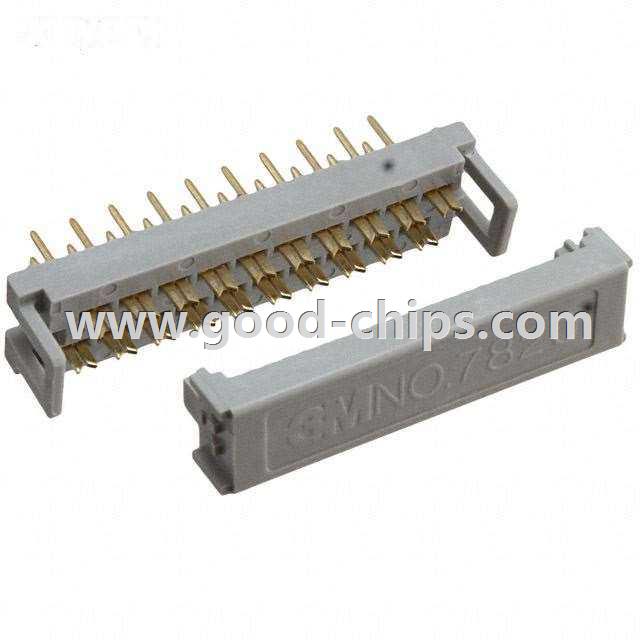

| Manufacturer Part Number: | 7820-0006PR |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Rectangular Connectors - Board In, Direct Wire to Board |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 20 Position Ribbon Cable, DIP Header Connector Gray IDC 26 AWG, Stranded; 28 AWG, Solid or Stranded; 30 AWG, Solid Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 7820-0006PR Datasheet |
| Internal Part Number | 898-7820-0006PR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | IDC Wiremount Connectors Primer | |
| Featured Product | Ribbon Cable Assemblies | |
| PCN Obsolescence/ EOL | 7800-0006PR Series 27/Apr/2015 | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Board In, Direct Wire to Board | |
| Manufacturer | 3M | |
| Series | 78XX | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Connector Type | Ribbon Cable, DIP Header | |
| Number of Positions | 20 | |
| Cable Pitch | 0.050" (1.27mm) | |
| Board-Side Pitch | 0.100" (2.54mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.100" (2.54mm) | |
| Mounting Type | Through Hole | |
| Cable Termination | IDC | |
| Wire Gauge | 26 AWG, Stranded; 28 AWG, Solid or Stranded; 30 AWG, Solid | |
| Features | Feed Through | |
| Contact Finish | Gold | |
| Contact Finish Thickness | Flash | |
| Color | Gray | |
| Number of Positions Loaded | All | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 7820-0006PR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
7820-0006PR is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 7820-0006PR is new and unused, you can buy 7820-0006PR 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 7820-0006PR.
